Description:
2 Pole 4 Position design, plastic metal material, easily turned.
Comes with mounting nut and black plastic knob, no worry about knob size mismatching
Widely used on radio, TV, industrial machine control unit, or other electronic devices.
Specification:

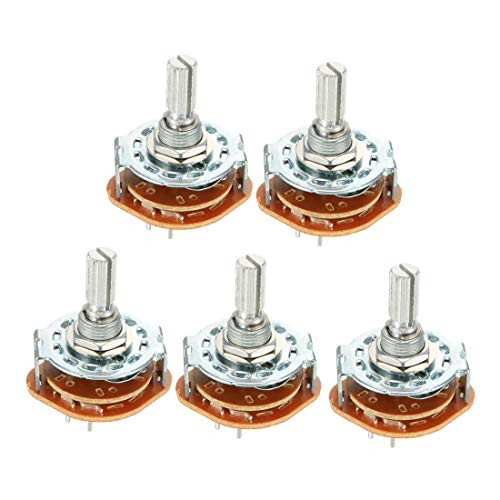

Product Name : Band Selector Rotary Switch
Package Content : 1Pcs x Rotary Switch
Model : KCZ 2*4+A03
Material : Metal, Plastic
Contact Type :2 Pole 4 Position,1Deck
Pin Number : 10
Fit Mounting Hole Diameter: 10mm / 0.39"
Rotating Shaft Dia : 6mm / 0.24" ; Shaft Length : 12mm/ 0.47"
Dimensions :44 x 42mm / 1.73" x 1.65"(Max.H*W)
