Description:
2 Pole 4 Position design, plastic metal material, easily turned.
Comes with mounting nut and black plastic knob, no worry about knob size mismatching
Widely used on radio, TV, industrial machine control unit, or other electronic devices.
Specification:

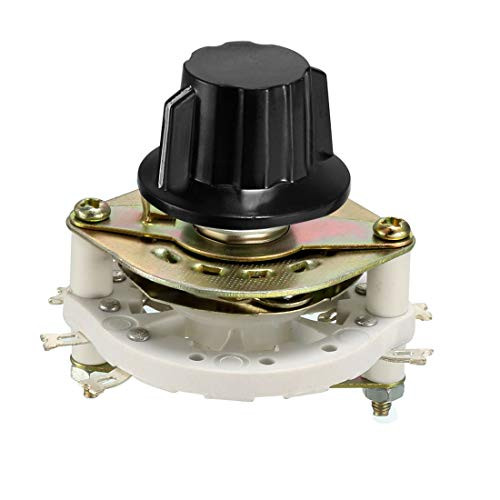

Product Name : Band Selector Rotary Switch
Model : KCT 2*4+K7-1
Material : Metal, Plastic
Contact Type : 2Pole 4Position, 1Deck;
Pin Number : 10
Rotating Shaft Dia : 6mm / 0.24inch ; Shaft Length : 11.7mm/ 0.46inch
Fit Mounting Hole Diameter: 9.7mm / 0.38inch
Dimensions (not including the cap) : 51x54mm/2.01x2.13inch(Max.H*D)
Package Content :
1 x Rotary Switch
