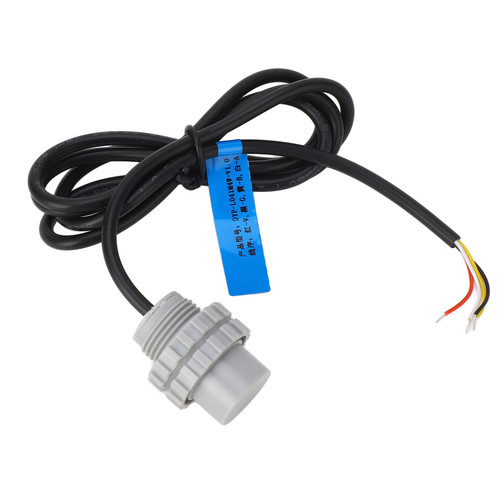

Ultrasonic Distance Sensor, DC 5?24V Simple Installation Ultrasonic Range Detector Small Blind Spot for Obstacle Avoidance (UART Controlled ?7mA 14ms)

1. Efficient Ranging: Can measure up to 3 meter, the ultrasonic detector enables accurate ranging that will not be influenced by environment. 2. Has Stable Output: Stable circuit design together with built in intelligent algorithm will largely improve the stability of data output. 3. Waterproof Design: IP68 waterproof design suits for various working environments in damp and harsh places, also has temperature compensation. 4. Saving the Energy: With lower power consumption design, the ultrasonic ranging sensor ensures reliable performance with small blind spot. 5. Wider Application: Allows for wide application in robot obstacle avoidance, underwater ranging and detection, parking space detection, etc. Spec: Item Type: Ultrasonic Distance Sensor Temperature Compensation: Yes Waterproof Grade: IP68 Working Temperature: -15 ?~55 ? Baud Rate: 115200bps Modification: Supports module address, angle, and baud rate modification. Standard: Electrostatic protection design, in accordance with IEC 61000-4-2 standard. Working Voltage: DC 5-24V Standby Current: ? 1mA Blind Spot Distance: Approx. 2cm / 0.79in Range of Flat Object: Approx. 3meter / 9.84ft Power on Working Time: ? 1s Work Cycle: Controlled Distance Measurement Accuracy Within 2 Meters: ± (0.5+ S x 0.5%) Distance Measurement Accuracy Above 2 Meters: ± (1+ S x 1%) Angle: 5-10 How to Use: Direct installation and use. PackageList: 1 x Ultrasonic Distance Sensor Notice: 1. Response time measured at 9600 baud rate. 2. The data obtained from the module's static test in an environment of 30CM underwater, 25 ? water temperature, calm water , and no water , where S represents the current distance. 3. The module is stationary in an environment of 30CM underwater, with a water temperature of 25 ?, a calm water , and no water . The data obtained from testing using a PVC pipe at 0.7 meters.
