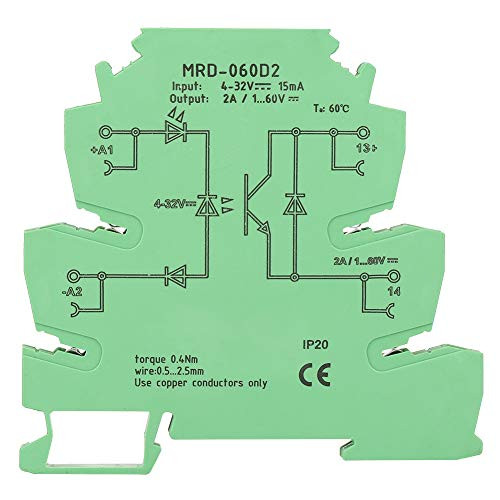

Ultra-thin PLC Relay Module SSR Electromagnetic Contact TS35 DIN-rail Interface Relay Board 4-32VDC 15mA input 1-60VDC 2 A Output Solid State Relay

Features: This Ultra-thin port type relay is mainly suitable for pneumatic DC electromagnetic valve Dc solid state relay output, no spark, wear-resistance, durable Overall shrinkage volume for saving space, TS - 35 rail installation With LED input state indicator, IP20 protection shell contactless Adjacent relay can bridge, fast connection operation Input and output protection circuit, the isolation voltage can be up to 4 kv Flame retardant shell, the integration of structure vibration resistance, impact resistance, stable performance Specification:  Model: MRD-060D2 Rated input voltage: 4-32VDC 15mA Rated output voltage: 1-60VDC 2 A Status indicates: yellow LED luminous tube Protection circuit: diode reverse connect protection Device type: power MOS FET transistor Leakage current: 1mA Input/output response time: < 250us Maximum continuous current: 2A Connection: screw connection Size: 81*6.2*78mm/3.2*0.2*3.1in Weight: Approx.32g/1.1oz Package list:  1 x Solid State Relay Module
