Introduction:

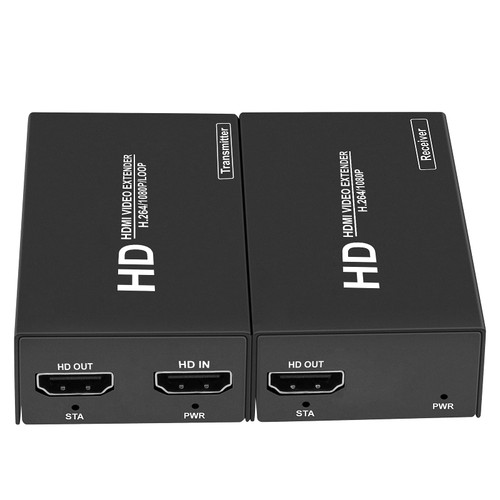

This product not only can work as other normal HDMI extender by CAT5/6 cable up to maxim 150 meters, but also can transmit HDMI data over local network. The data could be transmitted over switch, router and other Ethernet device, and extend the transfer distance to over 20km.
It also could work in broadcast mode, like HDMI splitter, broadcast HDMI signal from one sender to multiple receivers.
It also integrate HDMI audio extractor that could extract stereo audio out from HDMI signal and output via 3.5mm jacket.
Technical Specification:
Standard Power Input:5V-12V
Power Consumption:3W
Link Connection:UTP/STP CAT5/5e/6
Transfer Distance:
CAT5: 100meters
CAT5e: 120meters
CAT6:150meters
Audio Output Port:3.5mm jacket
Audio Output Format:L/R Stereo analog audio
Resolution Supported:1080p@50Hz / 1080p@60Hz / 1080p@24Hz / 1080i@50Hz / 1080i@60Hz / 720p@50Hz / 720p@60Hz / 576i@50Hz / 480p@60Hz
Latency:120ms point to point
Ethernet Bandwidth:100M
Package Contents:
Receiver x 1
Power Adapter x1
Manual x1
This product not only can work as other normal HDMI extender by CAT5/6 cable up to maxim 150 meters, but also can transmit HDMI data over local network. The data could be transmitted over switch, router and other Ethernet device, and extend the transfer distance to over 20km.
It also could work in broadcast mode, like HDMI splitter, broadcast HDMI signal from one sender to multiple receivers.
It also integrate HDMI audio extractor that could extract stereo audio out from HDMI signal and output via 3.5mm jacket.
Technical Specification:
Standard Power Input:5V-12V
Power Consumption:3W
Link Connection:UTP/STP CAT5/5e/6
Transfer Distance:
CAT5: 100meters
CAT5e: 120meters
CAT6:150meters
Audio Output Port:3.5mm jacket
Audio Output Format:L/R Stereo analog audio
Resolution Supported:1080p@50Hz / 1080p@60Hz / 1080p@24Hz / 1080i@50Hz / 1080i@60Hz / 720p@50Hz / 720p@60Hz / 576i@50Hz / 480p@60Hz
Latency:120ms point to point
Ethernet Bandwidth:100M
Package Contents:
Receiver x 1
Power Adapter x1
Manual x1
