Specification?

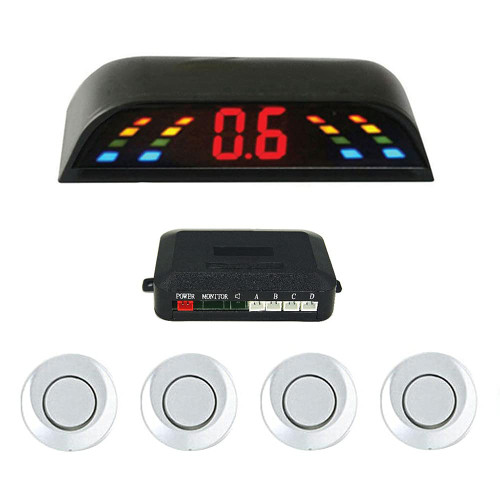

Product Name: Car Reversing Radar System Set
Product Material: ABS
Product Color: Black, White, Silver, Grey
Working Voltage: DC 9V-15V
Rated Voltage: DC 12V
Power Consumption: 0.5W Max
Test Distance: 300-2000 mm/11.81-78.74 inch
Alarm Distance: 0--2000 mm/0-78.74 inch
Display Resolution: 100 mm/3.94 inch
Probe Diameter: 22 mm/0.87 inch
Probe Installation Method: Drilling
Probe Direction: X, Y, 60 Degrees
Working Temperature: -30??80? (--22??176?)
Beep Mode: BIBIBI
Buzzer Volume: 65dB
Sound Frequency: 1600-2000mm/62.99-78.74inch: 0.5HZ (Slow); 1100-1500mm/43.31-59.06inch: 1 HZ (Slow); 600-1000mm/23.62-39.37inch: 3 HZ (Rapid); 0- 400mm/0-15.74inch: (Long Beep)
Probe Installation Precautions:
1. The installation height of the probe is 50-55 mm/1.97-2.17 inch. If it is installed too low, it is easy to detect the ground and cause false alarms.
2. There is an up, small arrow mark on the back of the probe, and the arrow is upward.
3. When installing the opening, there will be burrs on the bumper, which needs to be trimmed, so as not to press the probe too tightly and make it unable to work normally.
Package Included?
1* Monitor
1* Host
4* Probes
1* Drill
2* Stickers
1* Instruction Manual
1* Power Cord
