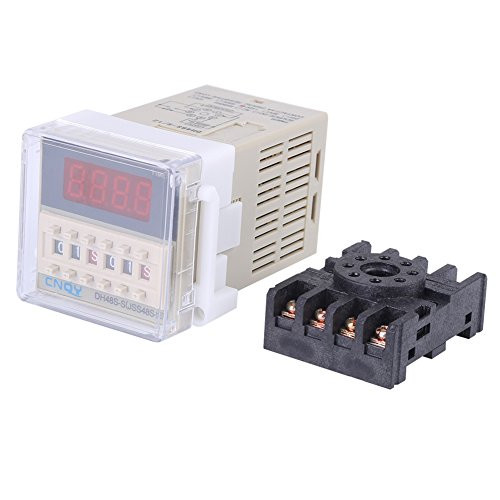

Timing Relay, Timing Relay with Base, Control Timing Relay, Cycle Control Relay, Industrial Timing Relay, 110V AC DH48S S 0.1s~99h Cycle Control Digital Display Time Relay with Base

Timing Relay, Timing Relay With Base, Control Timing Relay, Cycle Control Relay, Industrial Timing Relay, 110V AC DH48S S 0.1s~99h Cycle Control Digital Display Time Relay with Base Features:This time relay is applied in advertising lamp, industrial mining, mechanical equipment.LED display: high brightness, high clear LED digital tube display, it can be can be seen clearly no matter day or night. Flexible adjust button: elastic button, suitable for wide spacing, quick adjustment, easy to operate.Relay and transformer: both adopted of pure copper wire material. The relay is closely connected with the base, and the conductivity is excellent.The relay control time is 0.1s?T?99H, and with small power consumption, less than 5W. Specifications:Model: DH48S-SPower consumption: ?5WVoltage: AC110VCurrent: 5AError: ?0.3%±0.05sControl time: 0.1s?T?99HRated power: 50/60HZAmbient temperature:-10 to 50?Weight: 213g Product picture: Install diagram: 1. Pull out the base 2. Unscrew the connection screw 3. Connect the conductor according to the serial number of the base, and tighten the wire screw 4.Panel type assembly: place the relay into the panel 5.Panel type assembly: mount the base, the convex platform should aim at the groove of the base 6.Panel type  disassembly: Pull out the base 7. Panel type  disassembly: Pull out the relay 8. Guide rail type assembling: mount the base, the convex platform should aim at the groove of the base 9. Guide rail type assembling: make the product buckle into the guide rail in accordance with the direction as shown, 10. Guide rail type disassembly: Pull out the relay 11. Guide rail type disassembly: Pull out the base Package Included:1 x time relay Note: Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
