Description:
TFmini-S is the improved version of TFmini, it is a single-point micro ranging module and could be widely used in the integrated application of various drones, UAVs, Robots and industrial equipments. It is based on ToF (Time of Flight) principle and integrated with unique optical and electrical designs, so as to achieve stable, precise, high sensitivity and high-speed distance detection.
Features:
Operating Range : 0.1-12m
Maximum operating range at 10% reflectivity : 5m
Applicable voltage range : 4.5-6V
Average power consumption : 0.12W
FOV : 2°
Communication interface : UART/I2C
Electromagnetic Compatibility(EMC):EN 55032 Class B
Baud rate:115200
Data bit:8
Stop bit:1
Parity bit:0
Minimum resolution ratio : 5mm
Frequency: 100Hz(1-1000Hz adjustable)
Light source:VCSEL
Wavelength:850nm
Operating temperature : 20-60C
Light sensitivity : 70,000lux
Accuracy : 1% (less than 6m), 2% (6m-12m)
Size : 42mm * 15mm * 16mm
Weight : 6.1g
Certification:CE,FCC,ROHS
Major Applications:
Traffic Monitoring
Obstacle detection
Level measurement
Smart device
Security and obstacle avoidance
Drone altitude holding and terrain following
Machine control and safety sensors
Distance measuring instrument
Package Includes:

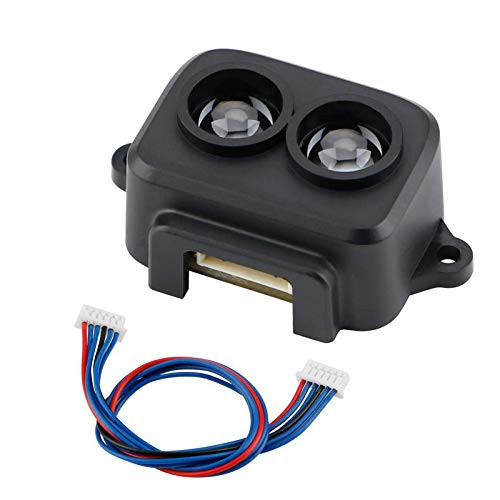

1 X TFmini-S Lidar Range Finder Module
2 X CableS FAQ
Q1: Is TFmini-S available with 3.3V or other power supply voltage?
A1: Sorry, it is not available for the time being. The Standard power supply of TFmini-S is 5V±0.1V. If you have any further requirement, please contact our sales person to consult a customization design matter.
TFminiS Lidar Range Finder Sensor Module SinglePoint Micro Ranging Module for Arduino Raspberry Pi Pixhawk 456V UART I2C Interface
Was:
$127.78
Now:
$63.89
- SKU:
- M142902
- Condition:
- New
- Availability:
- Free Shipping from the USA. Estimated 2-4 days delivery.
