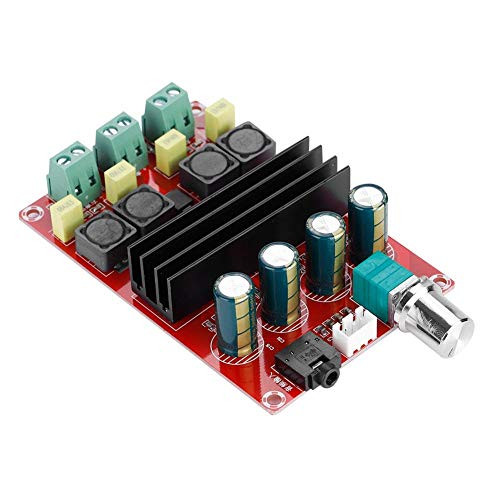

Taidacent XH-M190 2 Channel Audio Amplifier TDA3116D2 High-power Digital Power Amplifier Board TPA3116 Two-channel Amplifier Board 12-24V

Adopt imported dual IC digital working mode high resolution circuit high efficiency low fever 100W*2 super power Switching machine has no impact sound Main parameters Product Name: Digital Audio Power Amplifier Board Model: XH-M190 Input voltage: DC12-24V Input current: >5A Number of channels: two channels Magnification: 28 times Output power: 100W*2 Input impedance: 1k? Output matching: 2-8? Appearance size: 99*64*24mm Product net weight: 160g Product introduction: This power amplifier board adopts TI imported TPA3116D2 as the core, and the official data single chip is 50W*2. Engineers read the data and combine their own experience to develop 50W*2 dual core technology by bridge. The theory can reach 100W*2 due to the chip. For the digital chip, the efficiency is extremely high up to 90%, so it has the advantages of large power and small heat. The power supply is recommended to be powered by a DC power supply of 12-24V100W or more. This board is a finished board, ready to use, connected to the power supply and speakers. Experience the new experience of pure digital music!
