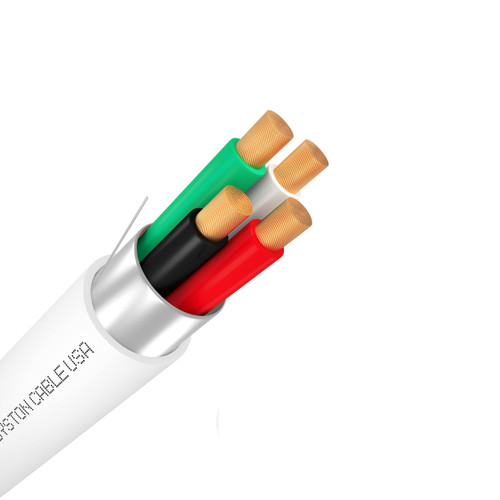

SYSTON 18/6 Fire Security Burglar Station Sound Alarm Control Cable Wire, Plenum-Rated CMP/CL3P Shielded 100% Copper Stranded UL/ETL,UV Resistant RoHS for Indoor/Outdoor Low Voltage Applications Use

Physical Characteristics Conductor: Stranded Bare Copper Size: 18 AWG Strand Count: 19/30 AWG Stranded Number of Conductors: 4 Insulation: Premium Polyolefin (Flame-Retardant & RoHS Compliant) Conductor Color Code: 1. Black 2. Red 3. White 4. Green Overall Shield: Aluminum/Polyester coverage 100% (Aluminum Side Contact Drain Wire) Drain wire: 7/32 AWG Stranded Tinned Copper Rip Cord: Applied longitudinally under jacket Jacket: PVC (Flame-Retardant, Sun Res & RoHS Compliant) Nominal Cable Diameter (in): 0.228 Nominal Cable Net Weight (lbs/1000 ft): 31.31 Minimum Bend Radius (in): 3.0 Maximum Pulling Force (lbs): 35 Temperature Rating (°F): Installation: +32 to +140 Storage & Operation: -4 to +167 Certificate for Management System ISO9001: 2008, ISO14001: 2004, OHSAS 18001 Standard Compliances NEC: 725 & 800 UL Standard: UL 13 & UL 444 Flame Rating: UL 1666 Plenum, c(UL) FT4 RoHS: Compliant Directive 2011/65/EU Electrical Characteristics Operating Voltage: 300 Volts Max Capacitance: 29 pF/ft Nom Impedance: 32 Ohms Nom DC Resistance: 6.9 Ohms/M’ @ +68 °F
