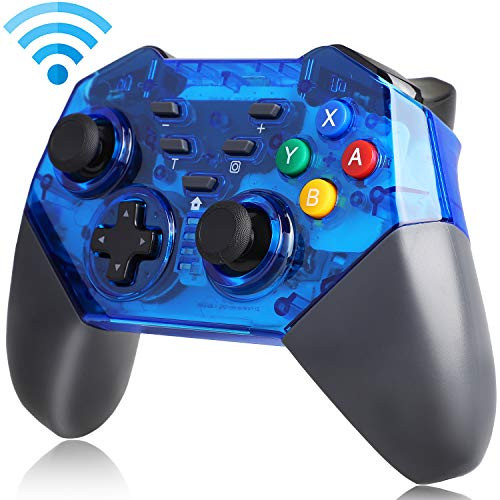

NOTE: This Wireless Controller supports version update. Please contact us if you need to update the firmware to match the latest version.
Product Specification:
Operating voltage: DC 3.7V-4.2V
Operating current: 20-30mA
Static current: 10-80uA
Vibrating current: 80-150mA
USB input voltage/current: DC 5V/500mA
Available distance: Less than 8m
Battery voltage/capacity: 3.7V/380mAh
Continuous operating time: Around 5h (fully charged)
Charging time: 2-3h
Static time: Around 25 days
Dimension: 155mm*106mm*60mm
Connection instruction:
1. Power on a Switch console.
2. For the first time, in the Console HOME Menu, select Options "Controllers" -- "Change Grip/order", stay here.
3. Press the "Y+HOME" button on the controller for 5s, the LED start blinking quickly and circularly, wait for around 10s, when the LED is solid bright, it means that the controller is paired with the console successfully, then press on the button "A" to operate.
4. For connecting the controller to the console for the second time and onwards, just hold down the HOME button for 5s to power on the controller, the controller will be connected to the console automatically.
5. If the controller is in sleeping mode, press the HOME button to wake it up.
Note: If the controller connection failed, it may be caused by your switch have recorded too many controllers before. In this situation, you should go to "System Setting--Controllers and Sensors--Disconnect Controllers" to purge data.
Package Includes:
1 x Wireless Controller.
1 x USB Charging Cable.
1 x User Manual.
