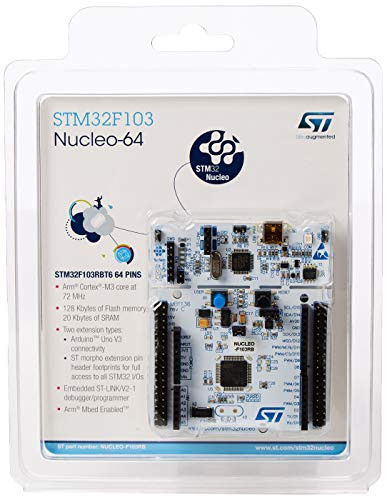

The ArduinoTM Uno V3 connectivity support and the ST morpho headers allow the easy expansion of the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.
The STM32 Nucleo board does not require any separate probe as it integrates the ST-LINK/V2-1 debugger and programmer.
The STM32 Nucleo board comes with the STM32 comprehensive software HAL library together with various packaged software examples, as well as direct access to the Arm MbedTM online resources at http://mbed.org.
Key Features: STM32 microcontroller in LQFP64 package External SMPS to generate Vcore logic supply (only available on '-P' suffixed boards) 1 user LED shared with ArduinoTM 1 user and 1 reset push-buttons 32.768 kHz LSE crystal oscillator Board expansion connectors: ArduinoTM Uno V3 ST morpho extension pin headers for full access to all STM32 I/Os External SMPS experimentation dedicated connector (only available on '-P' suffixed boards) Flexible power-supply options: ST-LINK USB VBUS or external sources On-board ST-LINK/V2-1 debugger/programmer with USB re-enumeration capability. Three different interfaces supported on USB: mass storage, virtual COM port and debug port Comprehensive free software libraries and examples available with the STM32Cube MCU Package Support of a wide choice of Integrated Development Environments (IDEs) including IARTM , Keil , GCC-based IDEs, Arm MbedTM Arm Mbed EnabledTM compliant (only for some Nucleo part numbers)
