?Specification
- Operating Voltage: 6V
- Operating Current: 160mAOpen circuit voltage: 4.5V
- Short circuit current: 190mA
- Power: 0.75W
- Use of the environment: -40 ? ~ 80 ?
- Performance: corrosion, moisture
- Size: Length 170mm/6.69(with edge 190mm/7.48) X Width 60mm/2.36 (with edge 70mm/2.76) X thickness0.5mm/0.02.
- Weight: 10 g ± 2 grams.
- Packaging Material: durable, hightransmittance TPU film
- Adhesive: weather, high transmittancefast curing EVA film
- Battery Type: Flexible triple junctionamorphous silicon thin film solar cells
Note: The above refers to the electricalperformance parameters measured under standard test conditions, namely: lightintensity 1000W / ?, spectrumAM1.5, cell temperature 25 ?.
?Parts List

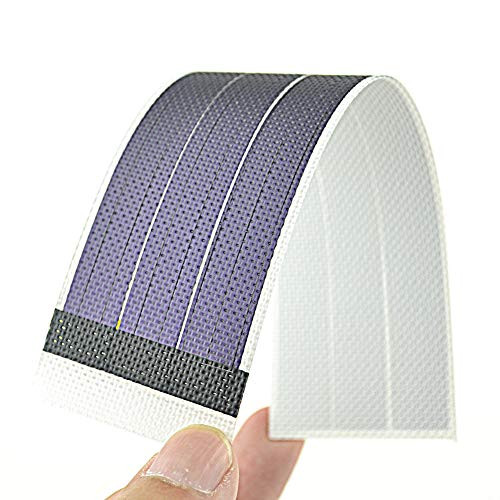

Flexible Solar Panel(4.5v/190ma) x1
Packaging Material: durable, hightransmittance ETFE film Adhesive: weather, high transmittancefast curing EVA filmBattery Type: Flexible triple junctionamorphous silicon thin film solar cellsNote: The above refers to the electricalperformance parameters measured under standard test conditions, namely: lightintensity 1000W / ?, spectrumAM1.5, cell temperature 25 ?.
flexible solar panels solar power panel solar panel cells diy solar panel solar cells diy jiangFlexible solar panel is use special high-end thin film technology.it have a special layered configuration that uses all of the different materials ability to absorb light to their full potential., It is has more advantages than laminated solar panel, such as good performance in the high temperature and in the low light, light weight to be more suitable for buildings which are sensitive in weight. The most important feature of t
