*Module device uses high-frequency specifications inductor-capacitor, crystal 10ppm high precision specifications ensure that the module wireless features are adequately represented.
*All modules have been professional equipment testing, consistency and stability of the modules are fully protected.
*SPI interface, small size dimensions, stamp holes convenient interface, embedded design, the full expansion of distance.
*With a shield, better anti-interference performance.
Specification: *Frequency range :410-440M (antenna matching optimum range, the domestic is free ISM band).
*Sensitivity: up to-126dBm (0.5Kbps).
*The maximum output power of the wireless transmitter: 20dBm (1.2Kbps, 433M).
*The data transfer rate :0.1-1Mbps.
*The modulation mode: FSK, GFSK, 4GFSK and OOK.
*Power :1.8-3.6 V.
*Low consumption in power-down mode is 30nA (4.21ms), in the standby mode 50nA;Receive current 10/13mA, the maximum emission current 85mA.
*The digital received signal strength indicator (RSSI).
*Timed wake-up function, wireless wake-up function (WUT).
*And antenna matching and bi-directional switch control.
*Can be configured packet structure.
*The former synchronization signal detection.
*64-byte receive data register (FIFO).
*On-chip integration of low battery detection.
*On-chip temperature sensor and 8 Analog to Digital Converter.
*The working temperature range: -40 ~ 80 ° C (temperature characteristics and product consistency is much better!).
*Integrated voltage regulator.
*Fast wake-up and frequency hopping function.
*Built-in crystal error adjustment function.
*The chip automatically calculate and check CRC-16, and supports three 16-bit CRC polynomial.
*Package Includes :1 x SI4463 Remote Wireless Transceiver Module.

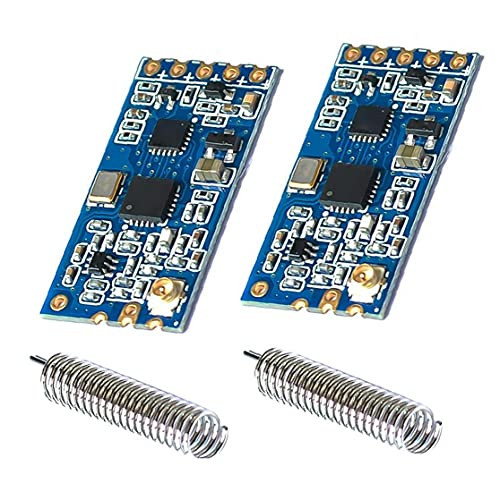

SMAKN SI4463 Remote Wireless Transceiver Module with Spring Antenna 2000M//433MHz SI4463 Wireless Transmission Module 100mW
Was:
$77.18
Now:
$38.59
- SKU:
- II253983
- UPC:
- 710185276069
- Condition:
- New
- Availability:
- Free Shipping from the USA. Estimated 2-4 days delivery.
