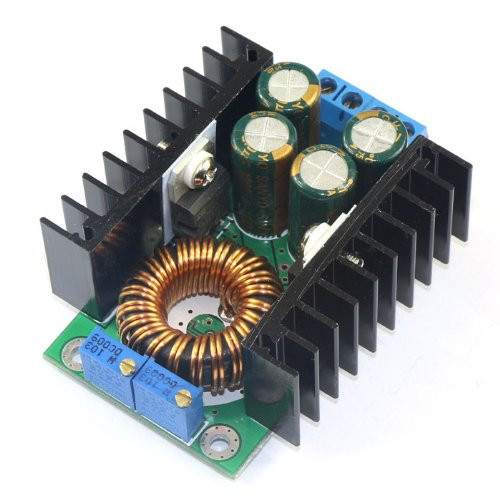

*Module Properties: non-isolated step-down constant current , constant voltage module (CC CV) charging module
*Input voltage : DC 7-40V
*Output voltage :DC 1.25-35V continuously adjustable
*Output Current: 10A ( when power tube's temperature exceeds 65 degrees, please add cooling fan )
*Constant current range :0.3-10A ( adjustable )
*Turn lamp current : constant current value * ( 0.1 ) , turn the lamp current and constant value linkage, such as constant current value is 3A, turn the lamp current is set to a constant current is 0.1 times (0.1 * 3A = 0.3A).
*Lowest pressure : 1V
*Output Power: about 250W , Maximum
*Conversion efficiency : up to about 95%
*Operating frequency : 300KHZ
*Output ripple : 20M bandwidth
*Input 24V Output 12V 5A ripple around 50mV ( excluding noise )
*Operating temperature : Industrial grade (-40 °c to +85 °c) ( please note the actual use of the power tube temperature , high temperature heat strengthened please )
*No-load current : Typical 20mA (24V switch 12V)
*Load regulation : ± 1% ( constant )
*Voltage regulation : ± 1%
*Dynamic response speed : 5% 200uS
*Potentiometer adjustment direction : clockwise ( increase ) , counterclockwise ( decrease ) . the potentiometer(CV) closed to the input voltage is used to regulate voltage, the potentiometer(CC) closed to output voltage is used to regulate current (CC)
Indicator : dual color indicator , charging indicator light is red , the green light means fully charged ( No load is green )
*Output short circuit protection : Yes , constant current
*Dimensions : 65 * 47 * 23.5 mm
