Specification:
Size: 0.96 inch
Resolution: 128X64
Viewing angle: greater than 160 degrees
Low power consumption: 0.04W during normal operation
Support wide voltage: 3.3V-5V DC
Working temperature: -30-80 degrees
Volume: 27MM * 27MM * 4.1MM
Driver IC: SSD1306
Communication: IIC, only two I / O ports
Is there a font library: No
Backlight: OLED self light, no backlight
Supported platforms: for 51 series, MSP430 series, STIM32 / 2, SCR chips
Interface:
VCC: 3.3-5V
GND: Ground
SCL: Serial Clock
SDA: Serial Data
Package included:
1 * 0.96 Inch I2C OLED Display

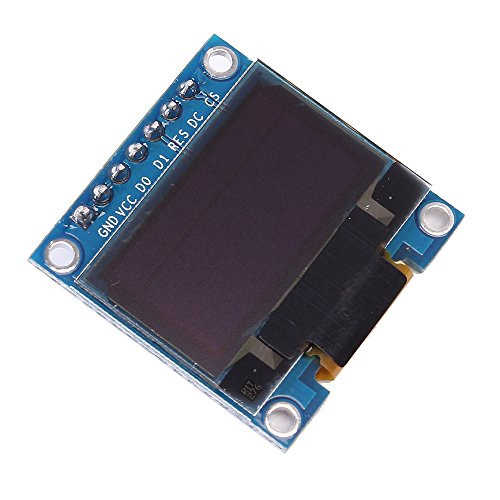

Sipytoph 0.96" OLED Module I2C IIC Serial 12864 128X64 Pixel OLED Display Module with SSD1306 Driver Board -0.96" White-
Was:
$41.88
Now:
$20.94
- SKU:
- ZA41283
- UPC:
- 770456621837
- Condition:
- New
- Availability:
- Free Shipping from the USA. Estimated 2-4 days delivery.
