Q: ?What Are You Worried About? ?
A: You are hesitating that other people are already using it, no matter what the reason is that you see this product. During this time, staying at home, I seem to be very bored, but with this Product, my life has hope. Only sell good quality goods, low prices will only bring inferior products, you may wish to try our Product
Features:
1. Made of quality material, having long service time.
2. This thermal relay can be used in the circuit of 50-60hz, rated insulation voltage 690V.
3. Used for protecting the phase break when the electric motor is overload.
4. The relay has different mechanism and temperature compensation
5. With phase break protection, manual and automatic reset, temperature
compensation, trip indication, test button, stop button
Specification:
Power frequency: 50-60hz
Optional Rated current: 0.63-1A, 1-1.6A, 1.6-2.5A, 2.5-4A, 4-6A, 5.5-8A, 9-13A, 12-18A, 17-25A, 23-32A
Rated insulation voltage: 690v
Phase break protection:yes
Manual and automatic reset: yes
Temperature compensation: available
Tripping instructions: yes
Test button: yes
Stop button: yes
Installation: plug-in
Auxiliary contacts: 1NO+1NC
AC 15 220V rated current A 2.73
AC 15 380V rated current A 1.58
DC-13 220V rated current A 0.2
Traverse sectional area: main loop1-4, auxiliary loop 0.5-2.5
Tripping level:10A
Fuse specification:12aM20gG
Weight: Approx.180g/6.35oz
Package list:
1 * Thermal Overload Relay

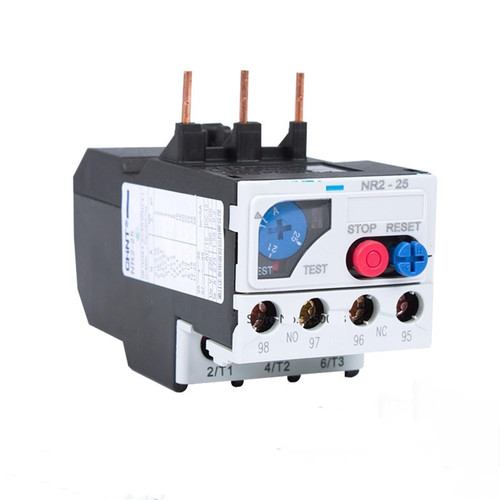

??????? ???? ?????Simlug Thermal Overload Relay NR2-25 Electric Adjustable Motor Protection Thermal Overload Relay-17-25A-
Was:
$69.66
Now:
$34.83
- SKU:
- YTH169841
- UPC:
- 738674632066
- Condition:
- New
- Availability:
- Free Shipping from the USA. Estimated 2-4 days delivery.
