Technical Specs
1. Dielectric Antenna
Center Frequency: 1575.42MHz ±3MHz
V.S.W.R: 2:01
Bandwidth: ±5 MHz
Impedance: 50
Peak Gain: > 3dBic based on 7x7cm ground plane
Gain Coverage: > -4dBic at -90 < 0 < 90 (over 75 volume)
Polarization: RHCP
2. LNA/Filter
LNA Gain Without cable: 28dB Typical
Noise Figure: 2.0dB
Filter Out Band Attenuation: (f0=1575.42MHz)
7dB Min f0+/-20MHz;
20dB Min f0+/-50MHz;
30dB Min f0+/-100MHz
V.S.W.R: < 2.0
DC Voltage: 3V to 5V
DC current: 7-10MA

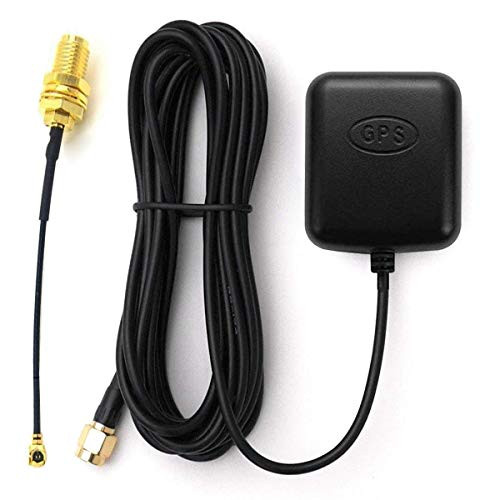

3. Overall
Frequency Range: 1575/1609MHz
V.S.W.R: 2.0
Gain: 30±3dBic
Weight: 60 gram
Size: 45x38x15mm
Cable: RG174
Length: 3m
Connector: SMA
Mounting: Magnet base
Housing: Black
4. Environmental
Working Temp: -40 to 85?
Waterproof test: 4 hours under the tap, let the water rush over the housing;
Vibration: Sine sweep 1g (0-p) 10 ~ 50 ~ 10Hz each axis
Humidity: 95% ~ 100% R
