This board is ARM Cortex-M3 Minimum System Development Board - STM32F103C8T6 with Arduino bootloader.
Compatible for Arduino IDE 1.8.x
Reference Links:
Wiki - http://wiki.stm32duino.com
Installation - https://github.com/rogerclarkmelbourne/Arduino_STM32/wiki/Installation
Files&Drivers - https://github.com/rogerclarkmelbourne/Arduino_STM32
* D+ pull-up R=1.5K, crystal = precision clock resonator
Original STM firmware (doc AN2606).
This board is ARM Cortex-M3 Minimum System Development Board - original STM32F103C8T6.
Board build on STM32F103C8T6 - STM32 microcontroller with ARM Coretex-M3 32-bit core.
Logic level - 3.3V
Board connects to the computer via micro-USB cable (used for almost all Android smartphones). You can supply power to board through the Micro-USB connector or to power pinheaders. The voltage regulator (LDO) can deal with incoming voltage from 4V to 8V DC. Output current for 3.3V - about 180mA (Please note that the higher the input voltage the lower the outgoing current). That will provide a reliable power most of your initial projects.
Product official page:
https://robotdyn.com/stm32-arm-arduino-mini-system-dev-board-blue-pill-with-arduino-bootloader.html
* For get a detail information of product, instruction, schematic diagram, dimension diagram, guide and software, Pls visit to official page of product.

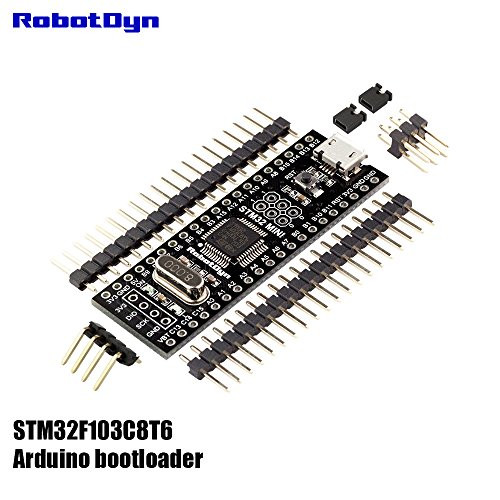

RobotDyn - Black Pill STM32 with ARDUINO BOOTLOADER, Original STM32F103C8T6 ARM Cortex-M3 Minimum System Development Board. Pinheaders Soldered
$7.47
- SKU:
- JJ216703
- UPC:
- 6.97062E+12
- Condition:
- New
- Availability:
- Free Shipping from the USA. Estimated 2-4 days delivery.
