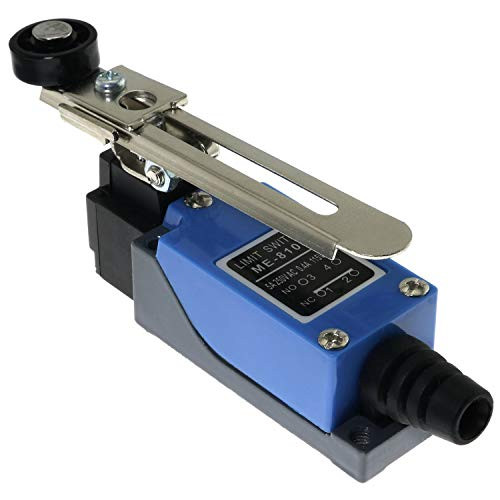

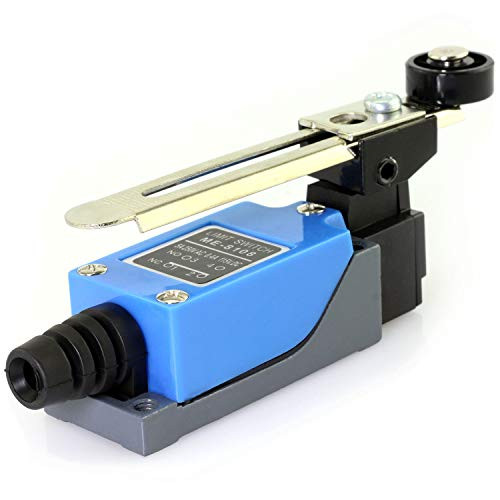

RLECS Rotary Adjustable Roller Lever Arm Momentary Limit Switch 5A-250V CNC Mill Laser Plasma Micro Limit Switch ME-8108

Specification: Type:Micro Limit Switch Model: ME-8108. Material: Resin, Plastic, Metal. Actuator Action: Momentary. Actuator Type: Rotary Adjustable Lever Arm with Roller. Contact Configuration: 2 NC + 2 NO. Contact: normally open and normally closed. Voltage Rating: AC250V, 5A / DC115V, 0.4A. Operation frequency: 120 times/min. Roller Dimension: 18 x 6.2mm / 0.7 x 0.24"(DxH) Lever Arm Length: 110mm / 4.3". Fixing Thread Diameter: 4mm / 0.16" Body Size: 126x29x48mm/4.96 x 1.14x1.89"(LxWxH) Service life: more than 500,000 times. This kind of switch is used to limit the position of the mechanical movement in a certain position or stroke automatic stop,inverse kinematics, variable motion or automatic movement and so on. Actuating unit, organization structure with high intensity, movements smooth, reliable and steady performance. Connection port, dust-proof insulation wiring. The stroke switch is installed in a pre-arranged position, when installed parts hit the switch module, travel switch contact action, implementation of circuit switching. Package content: 1pcs Micro Momentary Limit Switch
