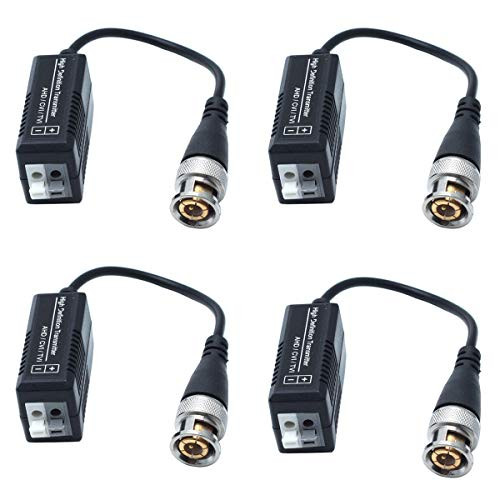

Riipoo 2 Pairs High-definition Passive Video Balun Transmitter & Transceiver for 720P/1080P AHD CVI TVI 960H DVR Camera CCTV System, Male BNC to UTP CAT 5/5e/6 Cable, No Power Required

Technical Parameters: - Transmission Signal: 1-HD signal - Transmission Distance: AHD /CVI 720P: 300 meters (max); AHD CVI TVI 1080P :250 meters(max); TVI 720P: 200 meters (max) - Transmission Medium: UTP CAT5 / 5E / 6 Video Transmission Performance: -Coaxial video interface: BNC-M - Compatible Format: AHD / HDCVI / HDTVI - Support Resolution: 720P / 1080P - Anti-interference Degree> 60dB - ESD Protection: 1a contact discharge electricity level 3; 1b 1b air discharge electricity level 3; Per: IEC61000-4-2 - Coaxial Video Interface protection: 2KV (common-code); Per: IEC1000-4-5 - UTP Cable Interface Protection: 2KV(differential-code); 4KV(common-code); Per: IEC61000-4-5 - Impedance: BNC-M 75; twisted pair 100 - Reliability: mean time between failures (MTBF)> 10,000 hours -Operating temperature: -10~55 -Storage temperature: -20~70 -Humidity (non-condensing): 0~95%(non-condensing) Dimension(L*W*H):13.7mm*11.6mm*3mm Package Contents: 2-pair(4Pcs)
