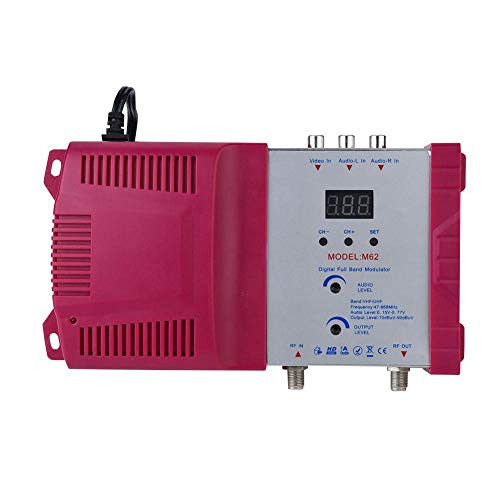

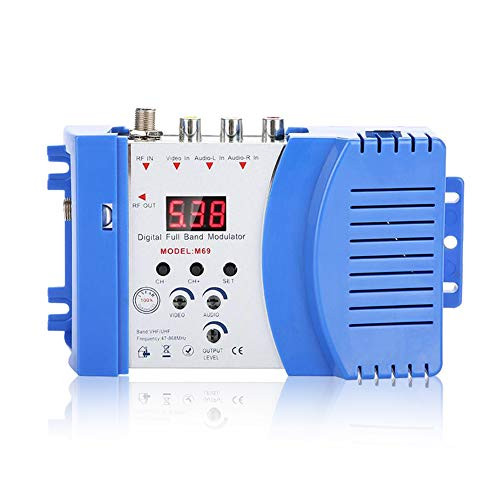

???This RF Modulator is designed to generate RF and TV signal from A/V sources, which you could view the program on your TV directly via channel. It's widely used in schools, retail display, trade show presentations and more.
???Features:
Humanized design, easy to install and operate.
High performance circuit design provides accurate picture reproduction.
Can convert audio and video to RF via channel.
VHF / UHF operating frequency from 47 to 868 MHz.
With selectable output level of audio and video.
Compatible with all local CATV system.
???Specifications:
Plug Type: US / EU(Optional)
Color: Blue / Orange(Optional)
Material: ABS
Input: AC120V, 60Hz
Max. Power: 3W
Frequency Range: 47-868MHz
Output Impedance: 750Hm
Output Level: 80-95dBuV
Input Level: 0.77Vp-p for 80%+/-10% modulation
Sound System: M=4.5MHz?B/G=5.5MHz?I=6.0MHz?D/K=6.5MHz
A/V connector: RCA Female
RF Input: F Female
RF Output: F Female
Operating Temperature: -10? ~+60? / 14?~140?
Item Size: Approx. 15.5 * 8.6 * 5cm / 6.1 * 3.4 * 2in
Item Weight: Approx. 356g / 12.6oz
Package Size: Approx. 16.5 * 10.8 * 5.5cm / 6.5 * 4.3 * 2.2in
Package Weight: Approx. 426g / 15oz
???Package List:
1 * Modulator
1 * User Manual(English)
