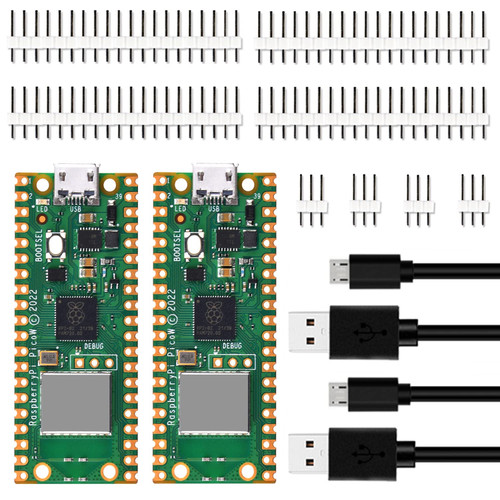

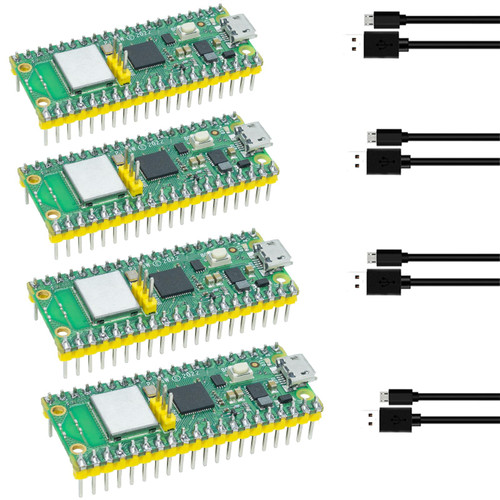

Raspberry Pi Pico W adds on-board single-band 2.4GHz wireless interfaces (802.11n) using the Infineon CYW4343 while retaining the Pico form factor. The on-board 2.4GHz wireless interface has the following features:
- Wireless (802.11n), single-band (2.4 GHz)
- WPA3
- Soft access point supporting up to four clients
Features:
- RP2040 microcontroller with 2MB of flash memory
- On-board single-band 2.4GHz wireless interfaces (802.11n)
- Micro USB B port for power and data (and for reprogramming the flash)
- 40 pin 21mmx51mm DIP style 1mm thick PCB with 0.1? through-hole pins also with edge castellations
- Exposes 26 multi-function 3.3V general purpose I/O (GPIO)
- 23 GPIO are digital-only, with three also being ADC capable
- Can be surface mounted as a module
- 3-pin ARM serial wire debug (SWD) port
- Simple yet highly flexible power supply architecture
- Various options for easily powering the unit from micro USB, external supplies, or batteries
- High quality, low cost, high availability
- Comprehensive SDK, software examples, and documentation
- Dual-core Cortex M0+ at up to 133MHz
- On-chip PLL allows variable core frequency
- 264kByte multi-bank high-performance SRAM
