Specification:

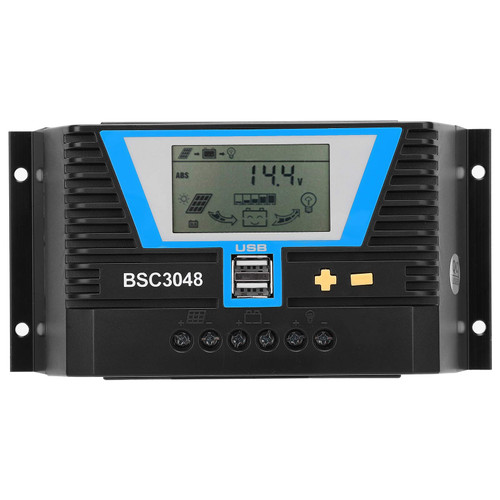

Item Type: Solar Controller
Material: ABS
Voltage: 12-24V automatic adaptation
Rated Charge Current: 30A
Rated Discharge Current: 10A
Voltage Max PV: from 12V Float charge voltage: b1 14. 4V, b2 14. 2V, b3 14. 6V (adjusted range 13V-15V)
Discharge cut-off voltage: 10.7V (adjusted range 9.5V) -11V)
Discharge recovery voltage: 12.6V (adjusted range 11.5V-13V)
Standby current: USB output: 5V, 2 At max
Operating temperature: -36 ? to +60 ?< br/>
Packing List:
1 MPPT Solar Charge Controller
Note:
1. The controller is 12 or 24V auto adaptation, when first installed, please make sure the battery enough voltage so that the controller can recognize the correct battery type.
2. Please install the controller as close to the battery as possible to avoid the voltage drop caused by the long cable, which will affect the normal voltage judgment.
3. The controller is suitable for various acid batteries (including open, sealed, gel, etc.), if you charge other batteries, you must be familiar with the characteristics of the battery and set the appropriate charging parameters. For example, 12V lithium battery charging prohibits setting 9.5V output protection, 122V full protection, the battery is exhausted when 11.5V charging starts.
4. This controller can use photovoltaic panels as charging source, please be quick to use DC or other power sources as charging source. 5. The controller will be hot when in operation, please pay attention to install the controller on a flat and well-ventilated face.
