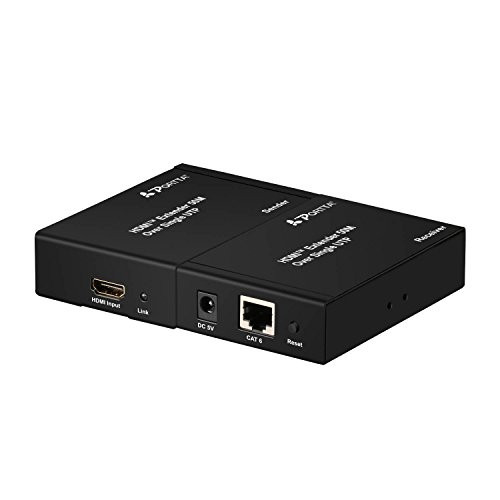

Portta HDMI Extender over Single UTP CAT5e/CAT6 Cable up to 50m support 3D

1.0 INTRODUCTION This HDMI Extender by CAT5 x1 uses one piece of CAT5e/6 cable to extend the HDTV display up to 50 meters for 1080p. It not only breaks the limitation of the HDMI cable transmission length?but also has more flexibility and convenience in cable construction. 2.0 SPECIFICATIONS Signal Input: HDMI Signal Input Video Signal:0.5 -1.0 volts p-p Output Video:HDMI Signal DTV/HDTV:480i/576i/480p/576p/720p/1080i/1080P CAT-6 cable: 50M for1080p Video Amplifier Bandwidth: 1.65Gpbs/165MHz Vertical Frequency Range: 50/60Hz Interlaced(50&60Hz):480i,576i,1080i Progressive(50&60Hz):480p,576p,720p,1080p Operating Temperature:0? to +70? Operating Humidity:10% to 85 % RH (no condensation) Storage Temperature: -10? to +80? Storage Humidity: 5% to 90 % RH (no condensation) Power Supply :5V DC Power consumption (Max): 5W Converter Unit Cert.:FCC,CE Power Supply Cert.:CE,FCC AC Power Adapter:US standard, UK standard and so on 3.0 PACKAGE CONTENTS 1)  Main unit NO. 1 Sender x1 2)  Main unit NO. 2 Receiver x1 3)  Two pieces of 5V DC Power Supply. x1 4)  User Manual(English Version) x1
