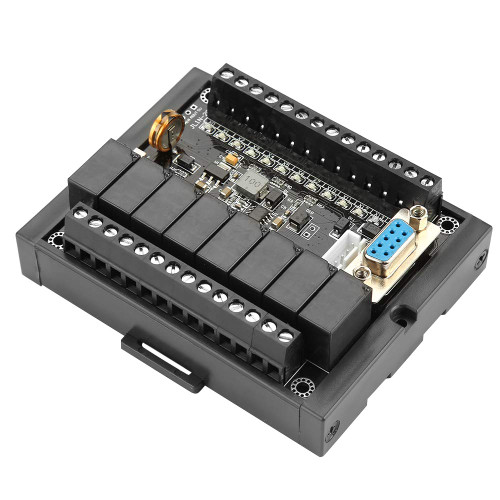

Programmable Controller PLC Regulator Programmable Remote Control Delay Module Controller Board Industrial Control Board DC 24V PLC FX1N-20MR
Specifications:
Model: FX1N-20mr
Working Voltage: DC24?V?
Wide Power Supply Voltage: 10-28VDC
Baud Rate: 9600
Programming Software: for GX-Developer, for GX-work2.
Size: Approx. 86 x 73 x 20mm / 3.4 x 2.9 x 0.7inch
Weight: 120G
Package Included:
1 x PLC Board
Module function:
Some of the common features are shown as follows:
Turn on the power supply, the relay 1 is closed for N seconds and then disconnect the relay 2 for N seconds.
When the power supply is turned on, the relay 1 is switched off after N seconds, and then the relay 2 is closed for N seconds and then is turned off.
The power supply is switched on, the relay 1, 2 have no action, when a signal or trigger button, relay 1 closed off after N seconds; then relay 2 closed off after N seconds, until the next trigger, repeat the same action.
Through the signal 1, 2 programming, the control can be achieved on the relay 1 and 2 arbitrarily.
Precautions for use:
The PLC with two programming port. The 232 interface, you can directly use the USB-232 serial port with a computer to download the program directly. The TTL interface.
Built-in Analog input AD, corresponding to internal data register D5030.(Not D8030)
Built-in Analog output DA, corresponding to internal data register D5101.
When the PLC need to connect with the touch screen or text, can be used to connect 232 programming port.
PLC Programmable Logic Controller Relay Output Module Motor Controller FX1N-20MR DC Panel PLC Controller Industrial Control Board
Was:
$117.76
Now:
$58.88
- SKU:
- qt509356
- UPC:
- 754959862607
- Condition:
- New
- Availability:
- Free Shipping from the USA. Estimated 2-4 days delivery.
