Description:
Our PID Temperature Controller kit is for variety of industries or home projects heating or cooling applications. It comes with dual digital PID REX-C100 Temperature Controller + max.40A SSR + K Thermocouple for your use.
Specification:
REX-C100 Temperature Controller
1.Measuring accuracy: ±0.5%FS
2.Cold-end compensation tolerance: ±2??can be modified by software in 0~50??
3.Resolution: 14 bit
4.Sampling cycle: 0.5 Sec
5. Power : AC 100-240V 50/60HZ
6.Process value (PV), Setting value (SV)
7.Output, self-tuning can be indicated by:LED
8.PIN control (including ON/OFF, step-type PID and continuous PID)
9.Self-tuning control
10.Relay output: contact capacity 250V AC 3A (resistive load)
11.Proportional band (P): 0~full range (ON/OFF control when set to 0)
12.Detective temperature range?0 to 400?
13.Insulation resistance: >50M ohm(500V DC)
14.Insulation resistance : 1500V AC/min
15.Insulation resistance : Power Consumption < 10 VA
16.Service environment: 0~50?
17.environment with no corrosive gas 30~85% RH

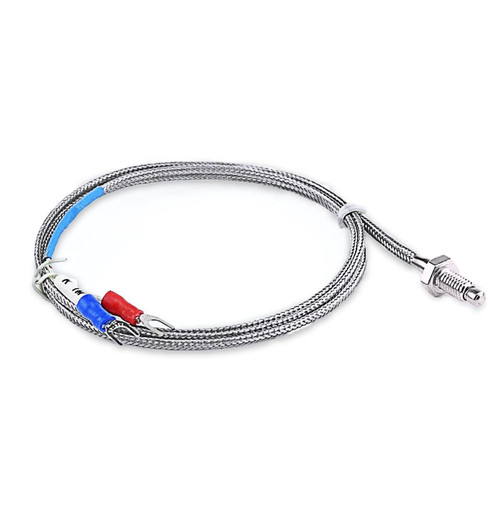

K Thermocouple Probe Cable
1.Length: 1M
2.Sensor diameter:4.5mm
3.Temperature rang :0-400?
4.Internal Insulation: Fiberglass
5.External Shielding: Insulated Shielding
Max.40A SSR
1.Output Current:40A
2.Input Voltage:DC 3-32V
3.Output Voltage:24-380V AC
4.Output Voltage Range:Standard Type
Package Content:
1 x PID Controller
1 x SSR-40DA
1 x K Thermocouple Sensor
PID Temperature Controller_ Digital PID Temperature Controller Dual Digital Display REX_C100 Temperature Controller Plus max.40A SSR Plus K Thermocouple 0 to 400? PID Controller Set
Was:
$98.44
Now:
$49.22
- SKU:
- W337114
- UPC:
- 663862349122
- Condition:
- New
- Availability:
- Free Shipping from the USA. Estimated 2-4 days delivery.
