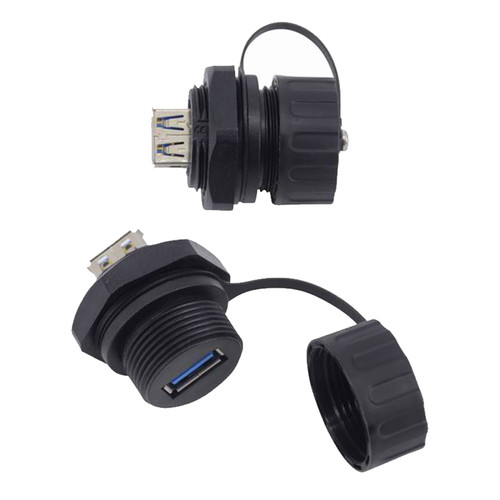

PENGLIN 2PCS USB 3.0 Waterproof Socket, D-Type USB Panel Mount Solderless Connector Female to Female Feed Thru Signal Coupler, High Speed Data Extension Interface Adapter

d type usb3.0 panel mount USB 3.0 Socket USB3.0 connector USB3.0 plug D panel connector USB 3.0 Data Connector USB3.0 D Series Panel-Mount Connector D-USB-3.0 USB 3.0 Pass Through Connector USB3.0 interface 86 Panel Mount Socket Technical Specifications: Waterproof rating: None (without waterproof cover), IP67 (with waterproof cover) Connection type: USB3.0 Rated current: 0.5A Rated voltage: 50V Insulation resistance: ?500M? Dielectric strength: DC1000V Contact resistance: ?10m? Material: Shell: Zinc diecast Contact material: Bronze Insulator material: PBTP 15% GR Waterproof rubber ring: silicone Environmental conditions: Working temperature: -40?120Celsius Storage temperature: -25?85Celsius Atmospheric pressure: 86?106kPa Relative humidity: ?90% RH Installation panel thickness: min 2.0mm-max 10mm Base shape: D type NOTE: The shielded industrial panel mount bulkhead includes a water/dust cap, that with characters of fire safety, compression, anti-explosion and anti-deformation, meets IP67 Water Protection. It is not waterproof without water/dust cap. Package includes: 2 x Panel Mounting USB3.0 Waterproof Connector 2 x waterproof cap
