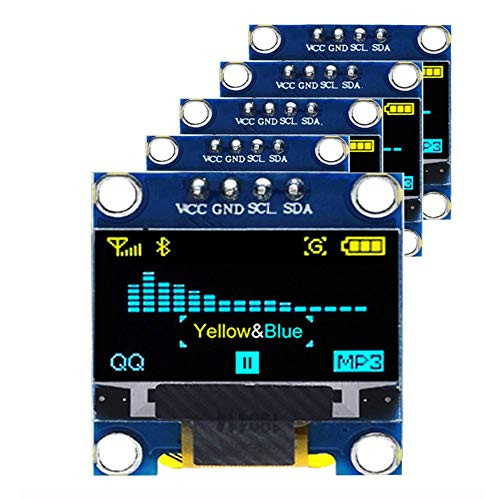

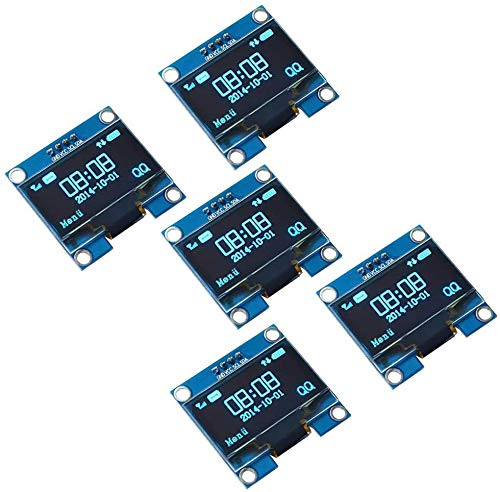

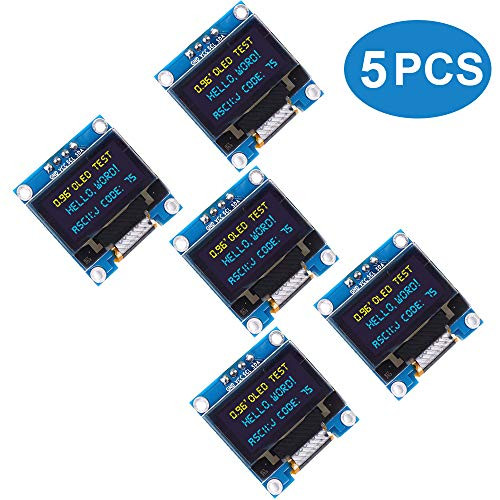

PEMENOL 5PCS OLED Display Module 128 x 64 OLED Display I2c 0.96inch OLED Display IIC Serial OLED Module with SSD1306 for Raspberry Pi and Microcontroller - Blue Light

PEMENOL 5PCS OLED Display Module can be widely use with 51 series, MSP430 series, STM32/2, CSR IC, etc. With 128 x 64 pixels high resolution, no need backlight and self-illumination, providing 180 degree clear display. High contrast through the use of innovative OLED technology in the large 0.96 inch display! Specifications: - Color: Blue light - Driver chip: SSD1306 - Interface Type: IIC / I2C-4PIN - High Resolution: 128 * 64 Pixels - Voltage: 3 V ~ 5 V DC - Viewing Angle: almost 180 degrees - Low power consumption : Full Screen 0.08 w - Operating Temperature: -30 Celsius ~ 70 Celsius - Many Control Chip Supports: Fully compatible with 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc Pin Definition: - GND: OLED Power Ground - VCC: OLED Power Positive 3.3-5 V - SCL: OLED IIC Clock - SDA: OLED IIC Data Line Note: OLED is self-luminous, no backlight needed! It does not respond when you just connect it to the mains, you have to program it and work properly, then it will display normally.
