Submersible Completely Sealed Trailer Boat LED Stop turn tail License plate Lights Kit
Application: Add or upgrade the lights on boat, snowmobile, camper, or utility trailer
Features:
12V LED Trailer Light Kit, Clearance
Functions as Stop Turn Tail Rear / Side reflector Side Marker and License Illuminator (on left).
For under 80" wide application
Acrylic lens is screwed on to the housing
Left side has 12 red square LED ( Stop, turn & tail) , 4 red round LED ( Side marker), and 5 white round LED (License)
Right side has 12 red square LED ( Stop, turn & tail) , 4 red round LED ( Side marker)

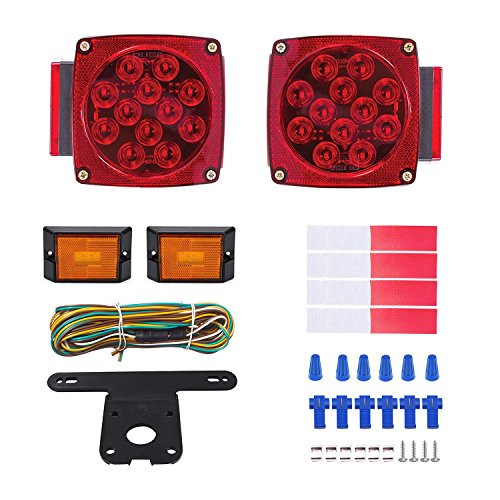

Kit includes 25" trailer wiring harness, 4" trunk connector, license plate bracket and mounting hardware.
Comes with Ground, Tail and Stop Turn 3 wires(high low brightness)
Light dimension: 4 9/16" h * 5 1/16" w * 2 3/4" d
High visibility safety lights are easy to mount
Includes one pair multi-functions tail lights, parts pack with all fasteners and commectors needed for installation
low heat, low current, high reliability, faster on and off and you can install as many LED lights on your boat and trailer as you want!
Wire Connection Tips:
Left side: White Wire is the Ground; White+ Yellow, front side works and is high brightness; White+ Brown, THREE sides work, front side is low brightness.
Right side: White Wire is the Ground; White+ Green, front side works and is high brightness; White+Brown, TWO sides work, front side is low brightness.
Tips: There is one more white light on the left side.
Partsam 12V Clear Lens Red LED Submersible Trailer Tail Light Kit for Under 80 Inch Boat Trailer RV Marine, Submersible Trailer Light Kit Square Waterproof 12V for Boat Heavy Duty Led Trailer Lights
Was:
$109.88
Now:
$54.94
- SKU:
- GZ425559
- UPC:
- 602731720747
- Condition:
- New
- Availability:
- Free Shipping from the USA. Estimated 2-4 days delivery.
