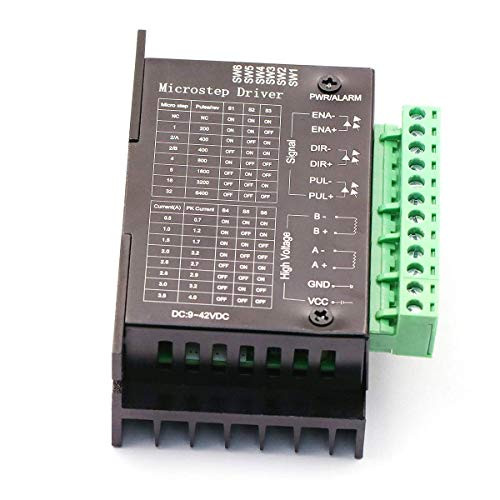

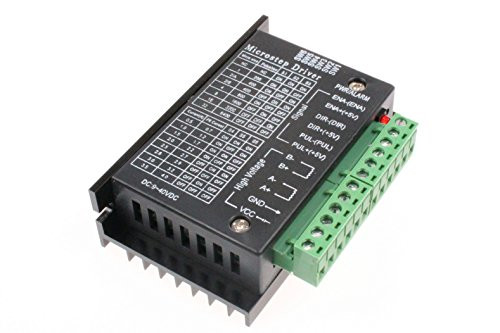

NOYITO TB6600 Stepper Motor Driver 32 Segments DC 9 to 40V 4-0A Suitable for 42 57 86 Type 2 Phase 4 Phase Stepper Motor - Upgraded Version

Features DC 9V-40V power supply.(Use the new upgrade the chip version) H-bridge bipolar constant phase flow driver. The maximum output current is 4.0A (eight optional). Up to 32 segments of six kinds of sub-modes available. The input signal high-speed photoelectric isolatio . Standard common anode single pulse interface. Offline keep function. Semi-enclosed chassis can adapt to a more demanding environment. Provide energy saving semiautomatic current lock function. Built-in thermal protection and over-current protection. Note: *This driver is the upgraded version TB6600, heightening segment to 32 subdivision, suitable for high segmentation applications. For step motor: 42, 57, 86 type 2 phase 4 phase (4 / 6 / 8 line). Terminal definition Definitions: Signal input: (1)CP +: pulse signal input positive side. (2)CP-: pulse signal input negative. (3)DIR +: motor positive, reverse control positive side. (4)DIR-: motor positive, reverse control negative. (5)EN +: motor offline control positive side. (6)EN-: motor off-line control negative. Motor winding connection: (7) A +: Connect the motor winding A + phase. (2) A-: connect the motor winding A-phase. (3) B +: Connect the motor winding B + phase. (4)B-: Connect the motor winding B-phase. Working voltage connection: (1) VCC: DC power supply positive (Note: 10V < VCC < 42V). (2)GND: DC power supply negative. Package Included: 1pcs TB6600 Stepper Motor Driver
