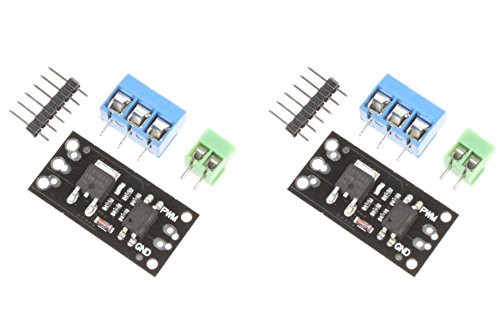

NOYITO Isolated MOS FET Field Effect Transistor Module Optocoupler isolation Alternative Relay For MCU Arduino - FR120N 100V 9.4A, LR7843 30V 161A, D4184 40V 50A (Pack of 2) (100V 9.4A FR120N)

Wiring diagram and Use Note Download Link: https://www.amazon.com/clouddrive/share/RMCMoV87IhwcHqH49POhcjFyCByBpDFX4eHE1EhTpco Module Features: 1. With optocoupler isolation, the control signal and the power of the controlled device are isolated, and the interference is greatly improved. 2, Compatible with single-chip and Arduino light control board, 3V or 5V signal. 3, High-level start, low-level stop, PWM speed control. 4, Widely used to control the motor start and stop, solenoid valves and other tributary devices. 5, There are 3 specifications MOS tube options: FR120N: 100V 9.4A / LR7843: 30V 161A / AOD4184: 40V 50A. 6. The signal input side can be soldered to the terminal or pin itself, compatible with the breadboard. 7, The output can be welded terminals or direct wire. 8, The module size 23mm X 16mm .There are 2 2mm diameter screw holes, hole spacing 8mm. Package Included: 2pcs Isolated MOS FET Field Effect Transistor Module
