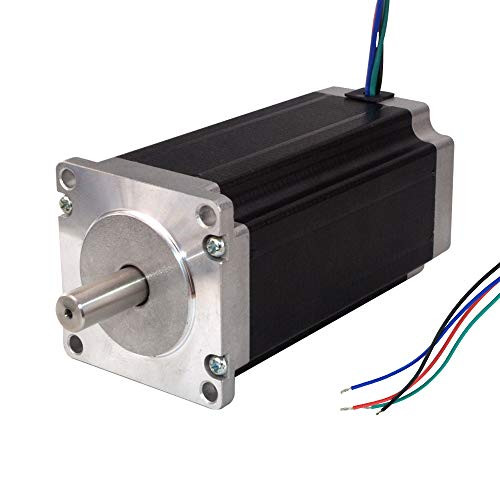

High Torque Stepper Motor Nema 23 Bipolar 2.8A 178.4oz-in 4-lead with 11.81" Cable for Extruder 3D Printer Milling CNC Machinery
Electrical Specification:
* Manufacturer Part Number: 23HE22-2804S
* Motor Type: Bipolar Stepper
* Step Angle: 1.8 deg.
* Holding Torque: 178.4oz.in( 1.26Nm)
* Rated Current/phase: 2.8A
* Phase Resistance: 0.9ohms
* Inductance: 2.5mH+/-20%(1KHz)
Physical Specification:
* Frame Size: 2.24 x 2.24 inches(57 x 57 mm)
* Body Length: 2.20 inches(56 mm)
* Shaft Diameter: ?0.25 inch(?6.35 mm)
* Shaft Length: 0.81 inch(21 mm)
* Number of Leads: 4
* Lead Length: 19.68 inches(500 mm)
* Weight: 24.69oz(700 g)
Connection:
Black(A+), Green(A-), Red(B+), Blue(B-)
Warning:
Connecting the motor directly to a power supply can destroy the motor.
Make sure the motor connect to a constant current or chopper drive controller before test
Nema 23 Stepper Motor 178oz-in Bipolar 1.8deg 2.8A Stepping Motor for CNC 3D Printer DIY Milling Lathe Router
Was:
$65.88
Now:
$32.94
- SKU:
- P589647
- UPC:
- 0781545592204
- Condition:
- New
- Availability:
- Free Shipping from the USA. Estimated 2-4 days delivery.
