Description:

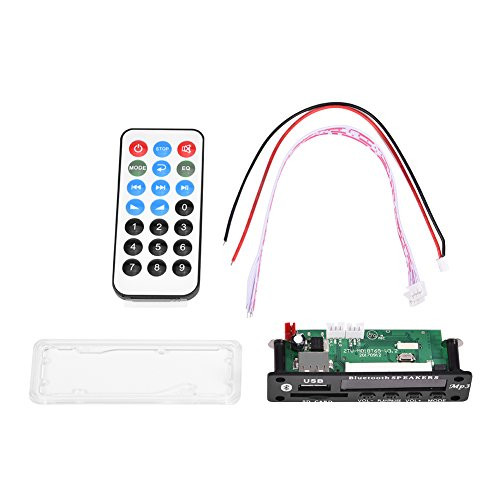

It is a car decoding power amplifier module.Built-in power amplifier module so it can be directly connected to the speaker.It comes with a control panel, suitable for car Bluetooth speaker devices.
Features:
1>.Bluetooth control
2>.Built-in power amplifier
3>.Support Bluetooth,U-disk,SD Card,FM work mode
4>.Support mobile phone calls
Parameters:
1>.Product name:CT02EA+BT 5V MP3 WAV Decoder Bluetooth Amplifier Module
2>.Model:CT02EA+BT
3>.Work Voltage:DC 3.6V-5V
4>.Work Temperature:-40?~85?
5>.Work Humidity:0%~95%RH
6>.Module Size:92*35*33mm
7>.Remote Controller Size:87*40*7mm
Power ON/OFF:
1>.Turn ON:Turn the power switch to the "ON" position on the panel.
2>.Turn OFF:Turn the power switch to the "OFF" position on the panel.
MP3 Player:
1>.Module will automatically identify MP3 files and playing from U-disk or SD card if user insert U-disk or SD card.
2>.Short press button V- to play the previous music.Long press button V- to turn down the volume.
3>.Press button STOP to stop playing or start playing.
4>.Short press button V+ to play the next music.Long press button V+ to turn up the volume.
5>.Press button MODE to switch work mode:Bluetooth,U-disk,SD Card,FM,Line mode.
MP3 Lossless Decoder Board Bluetooth 5V Audio Decoder Board Bluetooth Amplifier Module Audio Module USB SD FM Radio Decoder Board Module With Remote Controller
Was:
$55.88
Now:
$27.94
- SKU:
- O44492
- UPC:
- 782429499381
- Condition:
- New
- Availability:
- Free Shipping from the USA. Estimated 2-4 days delivery.
