Specification:
Item Type: Bluetooth MP3 Decoding Board
Power Supply: 3.7-5V
SNR: 90dB
THD+N: -70dB
Crosstalk: -86dB
DNR: 91dB
Support Profile: A2DP/AVCTP/AVDTP/AVRCP/HFP
LOS: >15m
Remote Control Battery: L1131C button cell
Battery Capacity: 75mAh
Voltage: 1.5V
Operation Instruction:
1. Mode Control
When the decode board doesn't plug U-disk or memory card,power on defaults Bluetooth mode;when the decode board plugs U-disk or memory card,power on defaults music mode;using remote control MODE key or key to switch mode
2. Music Mode
Plug U-disk or memory card can play audio file which has been saved
3. Bluetooth Mode
When switching mode,it broadcasts "The bluetooth device is ready to pair",representing that the board has entered into bluetooth mode and waiting for matching;cellphone bluetooth searching "XY_BT" (decode board device name),click the link,and the board prompts "The bluetooth device is connected successfully",representing that the decode board has connect with cellphone successfully and then play the music
4. USB Audio
USB Audio mode (also called sound card mode),use USB wire to connect with USB Audio interface,switch mode prompts "USB MODE" that is USB Audio mode.Open the music player on computer to play music,use decoder board to play music;if plug into memory card then it can be read
5. Notice: In USB Audio mode, please don't plug into U-disk
Package List:
1 x MP3 Decoding Board
1 x Remote Control

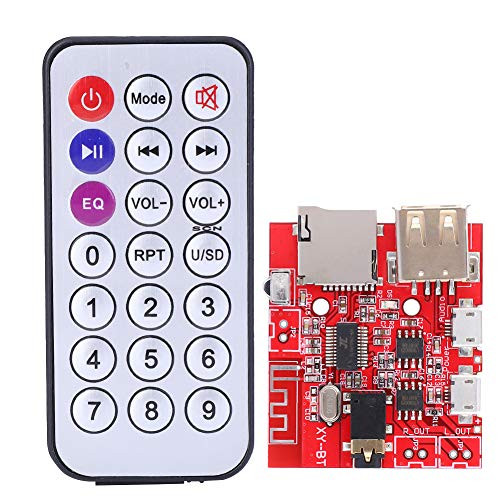

MP3 Decoding Board Bluetooth 4.1 Decoder Module Receiver Board Car Speaker Refit Equipment with Remote Control, Module
Was:
$63.08
Now:
$31.54
- SKU:
- ZD806678
- UPC:
- 738602575434
- Condition:
- New
- Availability:
- Free Shipping from the USA. Estimated 2-4 days delivery.
