This product is an ultra-small mini remote switch. This is a safe widely used and flexible remote relay.
Receiver parameters :
Model number: BPJ
frequency: 433Mhz
Working Voltage: DC3.5V-DC12V
Wide Range Working Voltage DC3.7V 4.5V 5V 6V 9V 12V
Max Load: 1A (have better Load less than 700ma)
Quiescent Current: 5ma
Relay Working Current: 20-30ma
Size: 25*11*8mm
Working Mode: Momentary. Toggle adjustable
(Notice: we send Momentary mode default . If you want to change to Toggle mode, need to use solder tool to operate)
How to change working mode :?Toggle : Let Point L and Point M in non-occupation
Encoding Type: Learning point to add extra transmitter
Normally Open Port (NO) Common Port (COM) Normally Close Port (NC) Input DC3.5V-DC12V Output 0V Switching Value
Learning method?Input 3.5V - 12V for the Receiver ,Connect the learning point with tweezers, the receiver LED indicator lights up or flashes, Press remote button 1 time, Led indicator flash for 3 times , Then Press remote button 1 time again , Led indicator flash for 3 times again , it mean learning successfully.
Momentary-----press one button is working /ON. loosen your finger on the same button is stop/OFF(one channel switch need one button remote)
Toggle----press one button for one time is working/ON .press the same button again is stop/OFF .(one channel switch need one button remote)
Remote control parameters:
frequency: 433Mhz
Working current: ?12mA
Transmission Distance: 10-50 Meters
Package Include:
1 x Receiver(without cover)
1 x Transmitter

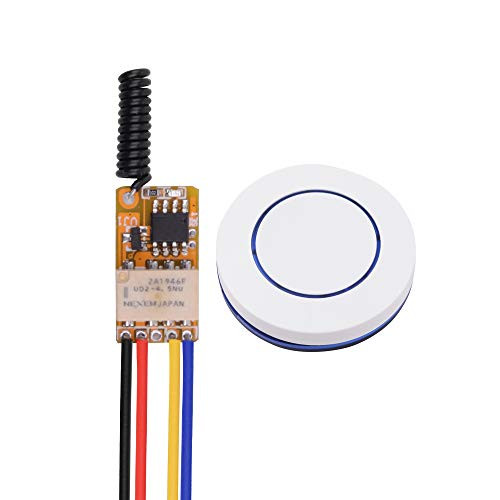

Mini Remote Relay 12V Wireless Remote Control Switch, 433Mhz Remote Momentary Switch Transmitter and Receiver for Wireless Control
Was:
$71.88
Now:
$35.94
- SKU:
- ZDT234156
- UPC:
- 732489635946
- Condition:
- New
- Availability:
- Free Shipping from the USA. Estimated 2-4 days delivery.
