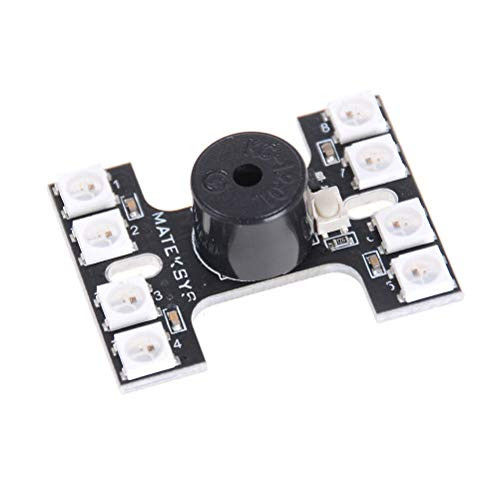

Matek Tail Light WS2812B and Loud Buzzer Dual Modes

Here comes the H-Type tail light with 8*WS2812B LEDs & Loud Buzzer. It provides dual control modes, can be controlled by Flight Controller fireware (Cleanflight, Betaflight, etc.) or Transmiter. It has been designed to fit in the Lumenier QAV-X Charpu frame.Features & Spec. Dual modes: FC control & TX control TX mode: LED 7 colors (White, Red, Green, Blue, Yellow, Magenta, Cyan) LED 4 status (Constant light, Slow flash, Fast flash, Voilent flash) Buzzer: Lost Plane Finder FC mode: supports Naze32 & SPRacingF3 with CleanFlight or Betaflight firmware Input voltage range: 4.5~5.2V DC Power of TX mode (5V IN ): 1W/0.2A~2W/0.4A Size & mounting: Please check the layout Weight: 5 grams How to Use Connect Tail Light to 5V power source, such as BEC 5V. Press the button, scroll through the LED status(Constant light, Slow flash, Fast flash, Voilent flash). Hold the button 2s to enter the setting of LED colors & mode(Be Be Be), then press the button to set it within LED colors of TX mode (White, Red, Green, Blue, Yellow, Magenta, Cyan) & FC mode (all LED OFF). The LED color(TX mode) or FC mode will be saved if no action within 10 seconds(Be). If the LED is messy when setting FC mode to TX mode, pls move the DIN & re-energize it.
