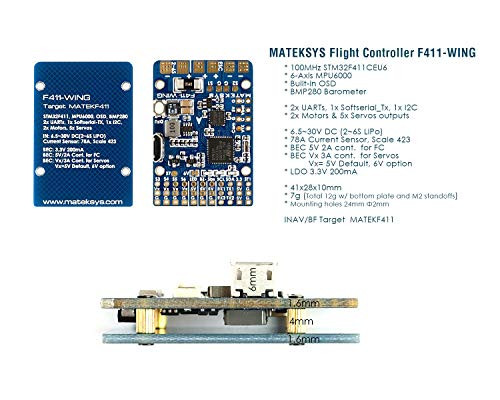

Matek System F411 WSE F4 Flight Controller with OSD Inav Firmware Dual Camera Inputs for RC Plane Fixed Wing FPV Aircraft Glider Sailplane Airplane Similar with F411 WING F722 WING F405 WING

FC Specifications MCU: 100MHz STM32F411CEU6 IMU: MPU6000 (SPI) Baro: BMP280 (I2C) OSD: AT7456E (SPI) Blackbox: No 2x Uarts 2x Softserial-Tx 2x Motors, 4x Servos outputs 1x I2C 4x ADC (VBAT, Current, RSSI, AirSpeed) 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red) Switchable Dual Camera Inputs TR/SA VTX control: Yes WS2812 Led control : Yes Beeper output: Yes RSSI: Yes Voltage devider for Analog Airspeed sensor: Yes FC Firmware INAV Target: MATEKF411SE PDB Input voltage range: 6~30V (2~6S LiPo) 2x ESC power pads Battery Voltage Sensor: 1:10 (Scale 1100) Current Senor: 78A,  3.3V ADC,  Scale 423 BEC 5V output Designed for Flight controller, Receiver, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed module Continuous current: 2 Amps, Max.3A(5seconds/minute) BEC Vx output Designed for Servos Voltage adjustable, 5V Default, 6V option Continuous current: 3.5 Amps, Max.5A(5seconds/minute) BEC 3.3V output Designed for Baro / Compass module/OLED and Spektrum RX Linear Regulator Continuous current: 200mA Physical Mounting: 24 x 24mm, ?2mm Dimensions: 28 x 28 x 14 mm Weight: 8.5g
