Item Features:
1.Transmitter
Operating Voltage: DC12V
Operating Current: 30MA
Operating Frequency: 433MHz
Frequency Distance: 50 meter(open/ideal) in theory, 10-50% in reality(In open environment,receiver antenna outside the box)
Encode: Fixed code, Soldering
2.Receiver
Channel: 1CH
Decode: Learning code
Working Voltage: AC 110V
Output way: Momentary Toggle Latched Adjustable
Maximum Load Current: 10A
Rated load:10A 110V
Receiver Sensitivity: -105dBm
Working temperature : -40\'C - +80\'C
Size : 55*30*18mm
Working/output way:
Jog/Non-Latched: Press one button is Working /ON. Loosen your finger on the same button is Stop/OFF. One channel switch need one buttons remote control.
Self -lock/Self-Latched: Press one button for one time is working/ON. Press the same button again is stop/OFF. One channel switch need one buttons remote control.
Inter-lock /Latched: Press one button is working/ON, press another button is stop/OFF. One channel switch need 2 buttons remote control.
Learning method:
Input AC 110V for the Receiver. press the Learning Button until the Led indicator ON. Then press transmitter , the Led indicator flash fast, it mean learning successfully.
Clearing Code:
Keeping press the learning Button on the receiver until the Led indicator ON and flash fast, it mean the code have been cleared successfully.
Please notice that :
Please tell us what output state do you want after placing the order. Or we will ship to you as default " Momentary (jog)". I t can be changed by Welding Spot by Soldering
Packing list:
1/2/3/4 x 110V Relay Receiver
1/2 x Remote Control (include Battery)
1X Use Instrucions

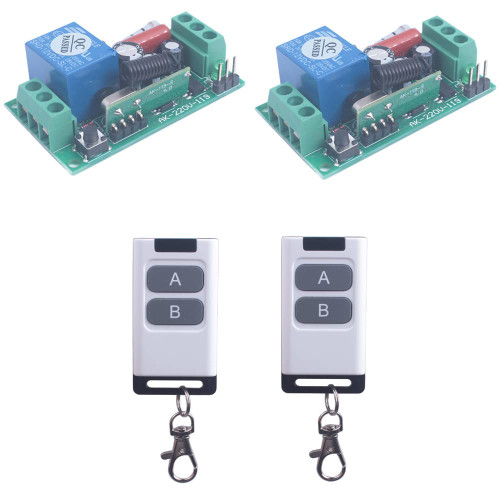

Mangood 110V Remote Control Light Switch 433MHz Remote Control Receiver Relay ON OFF 110V Remote Light Switch Remote Control Switch 10amp Learn Code Controller -1X Control plus2X Receiver-
Was:
$69.90
Now:
$34.95
- SKU:
- ZB142253
- UPC:
- 784133169734
- Condition:
- New
- Availability:
- Free Shipping from the USA. Estimated 2-4 days delivery.
