Parameters

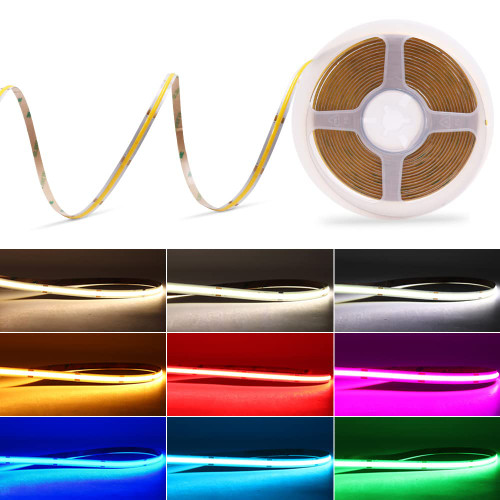

Product name: MALIGAZA 5mm COB LED Strip
LEDs quantity: 384 LEDs/m
Strip width: 0.2in (5mm)
Strip height: 0.08in(2.2mm)
Working voltage: DC 24V (CAN NOT connect to AC 110V directly!)
Color: Ice Blue
Smallest cut unit: 1.64in (50mm)
Power: 10W/meter
CRI(RA): 90+
Luminous efficacy: >100LM/W
Connector: with 2 wires on the both sides of strip
Package Included
1x 16.4FT COB LED strip (NOT including power supply)
How To Cut The COB Strip
1. Can cut the COB strip at every 1.64 inch length,there are many small cutting line on the front of the strip. Or take off the adhesive tape on the back, you can see many soldering points, can cut the strip at those points.
2. After cutting the COB strip, if you want to use the rest of the strip, you can solder wires (need soldering tool) on the back of the COB strip, or use special fast connectors.
Important Tips
1. The COB strip is connected by every 1.64FT length, so there are many soldering points on the COB strip, it's very normal, it will not influent the lighting effect.
2. The COB strip CAN NOT be connected to AC110V directly, need to add DC12V/24V transformer.
3. Please make sure the surface is clean and dry before installing the COB strip.
MALIIGAZA 5mm Ultra Thin COB LED Strip 24V Ice Blue Color 16.4FT, RA>90 High CRI LED Tape Light, Cuttable Flexible, IP30 for Indoor House Kitchen Room Decor
Was:
$95.88
Now:
$47.94
- SKU:
- ZD186863
- Condition:
- New
- Availability:
- Free Shipping from the USA. Estimated 2-4 days delivery.
