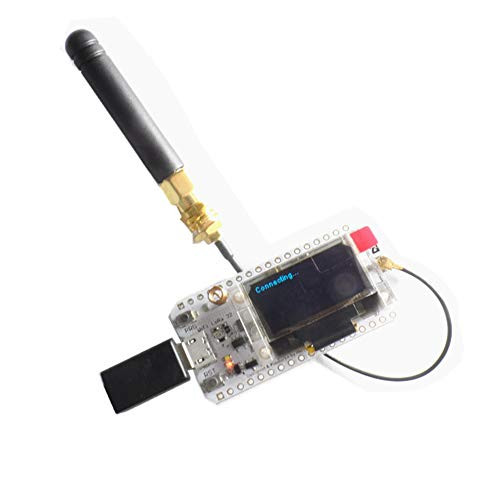

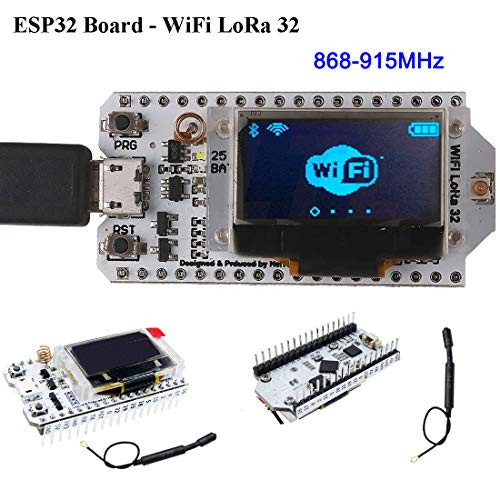

MakerFocus ESP32 Development Board WIFI Bluetooth LoRa Dual Core 240MHz CP2102 with 0.96inch OLED Display and 868/915MHZ Antenna for Arduino

Description:WIFI Kit series is the new development cost-effective networking program of our company, the main chip using Lexin ESP32, Tensilica LX6 dual-core processor, clocked at 240MHz, computing power up to 600DMIPS, chip built-in 520 KB SRAM, 802.11 b / g / N HT40 Wi-Fi transceiver, baseband, protocol stack and LWIP, integrated dual-mode Bluetooth (traditional Bluetooth and BLE low power Bluetooth).This product is based on the WIFI Kit 32 added SX1276 chip, that is, LoRa remote modem, 868/915MHz frequency, about -139dBm high sensitivity, +20 dBm power output, high reliability, transmission distance (measured open area communication distance 2.8Km).Onboard 32MByte Flash, Wi-Fi antenna, 0.96-inch blue OLED display, lithium battery charging circuit and interface, CP2102 USB to serial chip, the perfect support for Arduino development environment, can be very simple and fast for program verification and product development.Specification:Operating voltage: 3.3V to 7VOperating temperature range: -40 ° C to + 90 ° CSupports Sniffer, Station, softAP and Wi-Fi Direct modesData rate: 150 Mbps 11n HT40,72 Mbps 11n HT20,54 Mbps 11g, 11 Mbps 11bTransmit power: 19.5 dBm 11b, 16.5 dBm 11g, 15.5 dBm 11nReceiver sensitivity up to - 139 dBmUDP continues to throughput by 135 MbpsAntenna:Connector type: ipexBand definition: 868-915MHzStanding wave ratio: andlt;= 1.5Gain: 3dBiMaximum power: 10WInput impedance: 50?Package Including1 * ESP32 Development Board with OLED1 * 868/915MHz Antenna1 * Pin sticker2 * Pin headers
