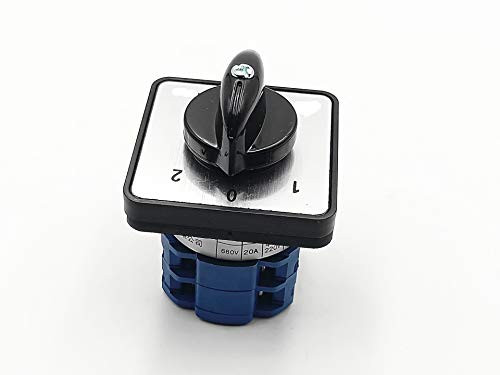

LXM Changeover Switch 3 Position Lock Switch Rotary Selector Cam Switch Panel Mount 8 Terminals Latching Ui 660V Ith 20A

Suitable for the thickness between 1mm to 4mm of the mounting board. *Rotary selector design switch, easy to control, square plate and screws for easily mounting. *Changeover switch mainly suitable for electrical wiring in the power switch and asynchronous motor start-up, reversing, speed switches, also can make the conversion of the control circuit. Specification: *Model: CA10-20/2 *Positions: 3 *Terminals: 8 *Ui: 550V ; Ith: 20A *Action Type: Latching *Positioning angle: 60-0-60 Degree *Mounting Type: Plate, Screw *Mounting Hole Distance: 36mm x 36mm / 1.41inch x 1.41inch (L*W) *Overall Size: 48.5 x 48.5 x 71mm / 1.91 x 1.91 x 2.8inch (L*W*H) *Rating: DC-13: Ui: 220V , Ith: 0.14A ; AC-15: Ue / Ie: 380V / 1.5A
