Feature:

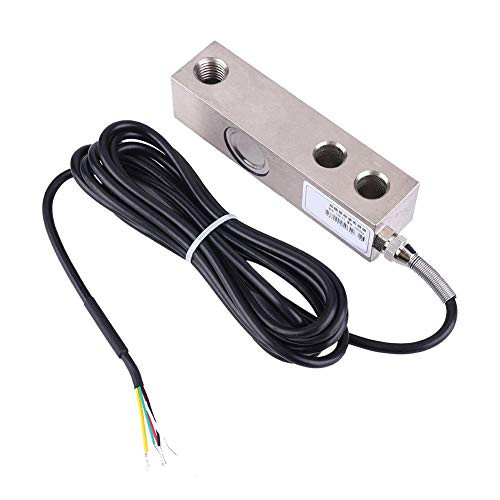

100% brand new and high quality. Oil-proof, waterproof and anti-corrosion, suitable for all kinds of environments. S beam design. Precise and stable. Easy installation. Suitable for mixing station, batching machine, asphalt station, etc. Safe and anti-explosive product, can be used in bad environment and hazardous areas.
Specifications:
Model: PSD-S1
Material: metal
Type: weighting
Physical properties of materials: conductors
Process: film
Output signal: analog
Protection grade: IP67
Linearity: ±0.02?%F.S.?
Delaying: ±0.02?%F.S.?
Repeatability: ±0.02?%F.S.?
Sensitivity: 2.0mv/v
Drifting: ±0.02%F.S
Input impedance: 350±10?
Output impedance: 350±5?
Application: Mixing station, batching machine, asphalt station, etc.
Measuring range(Optional): 50kg, 100kg, 300kg, 2000kg
Quantity: 1PC
Weight: 502g(load cell 50kg), 551g(load cell 100kg), 575g(load cell 300kg), 712g(load cell 2000kg)
Wire connecting method:
Input: Red wire(+), Black wire(-)
Output: Green wire(+), White wire(-)
Yellow wire(GND)
Package Included:
1 x Weighting Sensor
