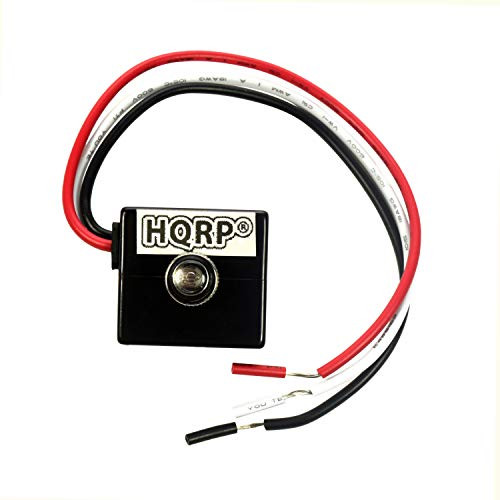

Light Photocell Sensor JM 103 Dusk to Dawn Photoelectric Switch 50 60Hz Hard Wired Auto On Off 120V UL Listed Outdoor Hard Wired Post Eye Light Control

Photocell Sensor Switch Features: First Testing: It’s regularly that the photocell sensor for post light will be closed for several minutes in the beginning. To test “turn on”during the daytime, cover its eye with JL-103-SC or other opaque material. Simple Installation: Disconnect power, remove junction box cover, place the photocell light sensor switch in the knockout hole and fasten with lock nut, then the wire according to the diagram in instructions. Technical Details: 120VAC voltage of our photocell light control, 10~20Lx on and 30~60Lx off operate level, widely use for electrical boxes and commonly use to control pole lanterns, outdoor light post lighting. Automatic Control:Conserve energy as switch comes with a light control sensor, the mini photocell light sensor inside senses sunlight and automatically turns an outdoor lamp post on at dusk and off at dawn. UL Certificated: UL Listed component switch is safe to use for both commercial and residential outdoor fixtures, ensure quality and your safety in the lamp posts or lanterns driveway and entryway lighting. Specification: Model No.: JL-103B Rated Voltage: 120VAC Rated Frequency: 50/60Hz Rated Loading: 500W TUNGSTEN, 850VA BALLAST Operate Level: 10-20Lx on, 10-20Lx off Ambient Temperature: -40?~70? Related Humidity: 99%RH Package Include: 1 pc pack in a carton. Tips: Ensure the fixed with the right connection between dusk to dawn photocell sensor and outdoor led light, pay attention to safety during operation. LED technical questions or designed, supported and engineered about photocell dusk to dawn sensor in Los Angeles, feel free to email us at any time.
