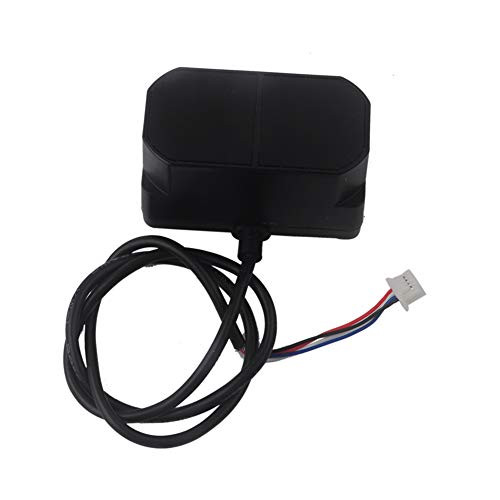

Lidar Range Finder Sensor Module Single-Point Micro Ranging Module for Arduino Pixhawk Cable Benewake TFmini Drone 4.5-6V

Description: TFmini is a single-point micro ranging module and could be widely used in the integrated application of various drones, UAVs, Robots and industrial equipments. It is based on ToF (Time of Flight) principle and integrated with unique optical and electrical designs, so as to achieve stable, precise, high sensitivity and high-speed distance detection. Features: Operating Range : 0.3-12m Maximum operating range at 10% reflectivity : 5m Applicable voltage range : 4.5-6V Average power consumption : 0.12W Acceptance angle : 2.3° Communication interface : UART Electromagnetic Compatibility(EMC):EN 55032 Class B Baud rate:115200 Data bit:8 Stop bit:1 Parity bit:0 Minimum resolution ratio : 5mm Frequency : 100Hz Wavelength:850nm Operating temperature : 20-60C Light sensitivity : 70,000lux Accuracy : 1% (less than 6m), 2% (6m-12m) Size : 42mm * 15mm * 16mm Weight : 6.1g Main applications:Drone altitude holding and terrain following Machine control and safety sensor Robot distance detection Certification:CE FCC ROHS Package Includes: 1 X Lidar Range Finder Module 1 X Connector Cable
