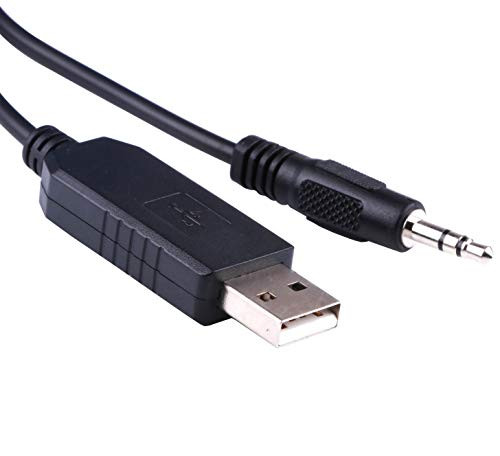

The TTL-232R-5V-AJ and 3V3-AJ cables are both terminated by a standard 3.5mm Audio Jack (AJ) connector. the 5V-AJ operates at +5V levels and the 3V3-AJ operates at +3.3V levels (signals and power supply). On these cables the VCC power is not transferred.
Typical Applications
USB to Serial TTL Level Converter
Upgrading Legacy Peripherals to USB
Interface Microcontroller UART or I/O to USB
Interface FPGA / PLD to USB
Interface to FTDI VDRIVE2 or VMUSIC2 modules.
Replace MAX232 type level shifters allowing for direct connection of products to PC via USB
USB Instrumentation PC interface
USB Industrial Control
USB Software / Hardware Encryption Dongles
Works for Galileo Gen2 Boards/BeagleBone Black/Minnowboard Max and more
TTL-232R Converter Cable provides a USB to TTL Serial interface with various end connectors.
On board FT232RL provides single chip USB to asynchronous serial data transfer interface.
Entire USB protocol handled by the electronics in the cable USB.
Connect directly to a microcontroller UART or I/O pins.
UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.
Fully assisted hardware (RTS#/CTS#) or X-On / X-Off software handshaking.
Data transfer rates from 300 baud to 3 Mbaud at TTL levels.
Internal EEPROM with user writeable area.
FTDIs royalty-free VCP allow for communication as a standard emulated COM port and D2XX direct drivers provide DLL application programming interface.
Support for FT232R FTDIChip-ID feature for improved security.
3 way Audio Jack connector provides Tx, Rx and GND.
Low USB bandwidth consumption.
UHCI / OHCI / EHCI host controller compatible.
USB 2.0 Full Speed compatible.
-40°C to +85°C operating temperature range.
Cable length is 1.80m (6 feet).2 core and spiral, 24 AWG diam=5mm
FCC and CE compliant.
