Specification:
Model: Yyc2S
Material: Plastic
Weight: 51G/1.8Oz
Voltage: 12V, 24V
(Optional)
Output Power: Dc Or Ac Load Within 5A Can Be Controlled
Time Range: 0.01 Seconds To 999 Minutes Can Be Adjusted At Any Time
Description Of Wiring Port:
1. Dc+ : Input The Positive Pole Of Dc Power Supply
2, Dc : Input Dc Power Supply Cathode
3. In+ : Signal Input Is Positive
4, In : Signal Input Terminal Negative
5. No: The Relay Normally Opens The Interface, And The Relay Is Suspended Before Absorption, And Is Connected With Com Short After Absorption
6. Com: Relay Public Interface
7. Nc: The Relay Normally Closes The Interface, And The Relay Is Short Connected With Com Before Absorbing And Suspended After Absorbing.
Key Setting Instructions:&Nbsp;
Power On Display "" Means To Enter Standby State;
Press K1 For The First Time (It Takes More Than 1 Second To Be Effective To Prevent False Triggering), And It Shows: P11: K2 Adjusts The Main Mode, K3K4 Adjusts The Function
Press K1 The Second Time, The Screen Will Show: A001:K2 And K3 To Adjust The First Time A And K4 To Adjust The Decimal Point (Time Unit).
Press K1 For The Third Time, And The Screen Will Show: B001:K2 And K3 To Adjust The Second Time B And K4 To Adjust The Decimal Point (Time Unit).
Press K1 For The Fourth Time, And "--" Indicates Standby State
Press K4 In Standby State To Permanently Close/Open The Display And Switch To Low-Power Mode.
Package List:
1 X Timer Relay

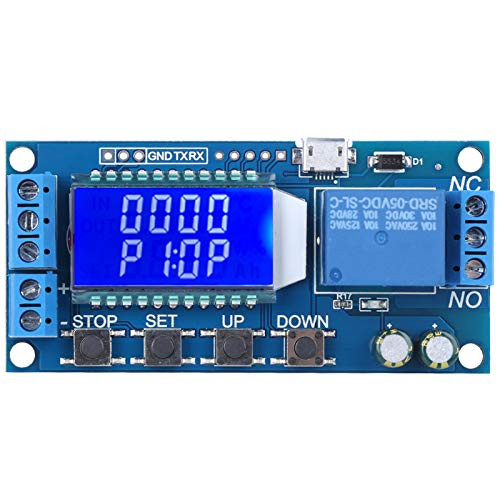

Led Display Adjustable Timer Relay Automation Control Switch Module Relay Module Off Trigger Delay Power Off Cycle Time Circuit Switch-12V-
Was:
$64.74
Now:
$32.37
- SKU:
- ZB644184
- UPC:
- 6458516923803
- Condition:
- New
- Availability:
- Free Shipping from the USA. Estimated 2-4 days delivery.
