Features:
3.2 inch color screen, support 65K color display, and the display is colorful
320X240 HD resolution, with touch function(optional)
Using Serial Peripheral Interface serial bus, it only needs a few IO to lighten the display
Memory card cage for easy expansion of experiments
Provides a rich sample program
Military technology standard, long - term stable work
Provide underlying driver technical support
Specification:
Size: 3.2 inch
Type: with touch function, no touch function (optional)
Driver chip: ILI9341
Resolution: 320*240 (Pixel)
Module interface: 4-wire SPI interface
Effective display area: 48.6x64.8(mm)
Module PCB plate size: 55.04x89.3(mm)
VCC power supply voltage: 3.3v ~5V
Logical IO port voltage: 3.3v (TTL)
The power consumption: Approx. 90mA
Weight: Approx.42g/1.5oz
Interface definition: serial number label Pin description 1 VCC power input(3.3V~5V) 2
GND
Power Ground
3 CS LCD Chip Selection 4 RESET LCD reset 5 DC LCD Bus command/data selection 6 SDI(MOSI) LCD SPI Displays bus data input 7 SCK LCD SPI Displays bus clock signal 8 LED LCD Backlight control (high level lighting) 9 SDO(MISO) LCD SPI Displays bus data output 10 T_CLK Touch panel SPI bus clock signal 11 T_CS Touch panel SPI busChip Selection 12 T_DIN Touch panel SPI bus data input
13 T_DO Touch panel SPI bus data outp

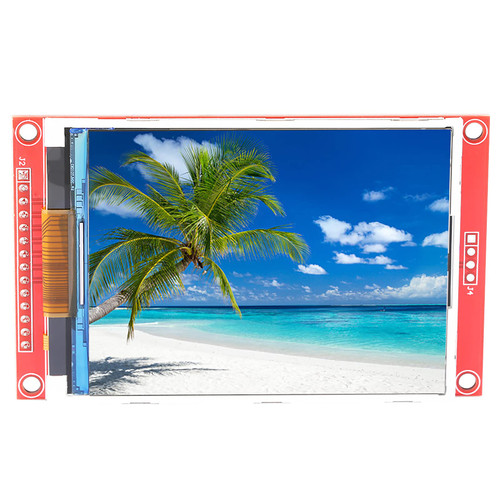

LCD Driver Board, LCD Display Touch Panel, LCD Tft Display Module, 3.3V 3.2Inch Durable Stable Ili9341 for 4-Wire Spi Interface 3.3V ~5V 240 * 320 (With touch)
Was:
$88.12
Now:
$44.06
- SKU:
- ZDU127721
- UPC:
- 7559452319114
- Condition:
- New
- Availability:
- Free Shipping from the USA. Estimated 2-4 days delivery.
