Suitable for automobile, motorcycle modification, switch modification of control equipment

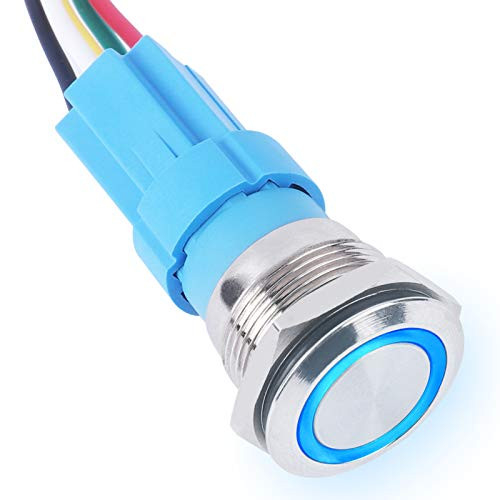

Latching switch
The Latching switch will remain on once it ispressed and stay on until it is pressed again.
Specification:
- Switch Rating: 5A/250VAC
- Operation Temperature: -20?~ +55?
- Mechanical life: 1,000,000 cycles
- Electrical life: 200,000 cycles
- Panel thickness: 1 - 10mm
- Protection level: IP65, IK10
- Mounting Cut Hole: 19mm
- Head Diameter: 22mm
- Operation Type: Latching
- Switch Contact: 1NO 1NC
- LED Rating: 15mA, AC/DC 12V
- LED Pattern: Ring Indicator
- Contact Material: Silver alloy
- Button Material: Stainless Steel
Note:
- The switch come with a rubber O-ring whichmakes it splash resistant but it can NOT be submerged underwater.

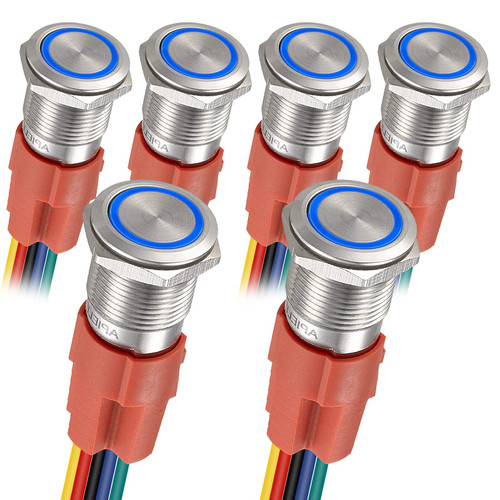

Packing Include: 6 x push button switch, 6 x pigtail socket, 1 x Wiring diagram
