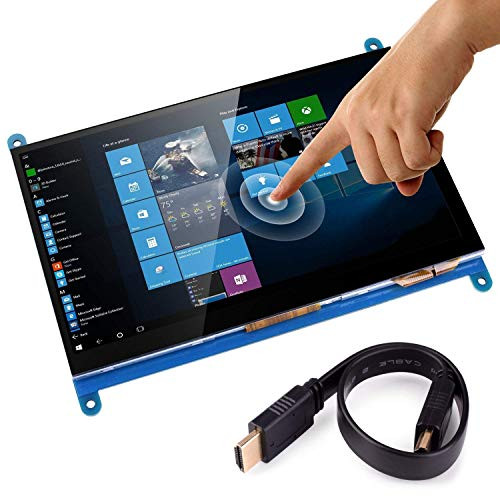

Kuman 7 Inch Capacitive Touch Screen TFT LCD Display HDMI Module 800x480 for Raspberry Pi 3 2 Model B and RPi 1 B+ A BB Black PC Various Systems SC7B (7 Inch Raspberry Pi Touch Screen)

NOTE: 1.Please note Supported update Raspberry Pi 3 2 and RPi 1 Model B B+ BB BLACK supported 2.Power Supply is NOT included.for PI ,do not require power supply 3.There is a sticker on the LCD screen. Please peel off before use. Feature: LCD Size : 7.0 inch (Diagonal) Driver Element : A-Si TFT active matrix Display mode : Normally White ,Transmissive High Resolution: 1152,000 Dots (800 x 3(RGB) x 480) SSD1963 touch panel controller Dot pitch : 0.0642(W) X 0.1790(H)mm Active Area : 154.08(w)X 85.92(H) Module Size : 164.9(w)X100.0(H)x5.7(D)mm Surface Treatment : Anti-glare Color arrangement : RGB-Stripe Interface: Digital Blacklight : Highlighted LED lamp backlighting TFT Power(pin Name: 3.3V): The power of the screen is 2.8-3.3V; not use 5V, all the Pin's voltage on the module Can not be more than 3.3V. Backlight power supply (pin Name: 5V): backlight power range is 4.5-7V. Interface Type: 16 parallel Operating Temperature : -20 ~ +70 degrees centigrade Storage Temperature : -30 ~ +80 degrees centigrade Package includes: 7inch HDMI LCD (B) x 1 HDMI cable x 1 USB type A plug to micro B plug cable x 1 RPi screws pack (4pcs) x 1 DVD × 1 SC7B 7 inch HDMI LCD(B) Using standard HID protocol, so that you can migrate its to your own systems With the use of Pi Raspberry, support Raspbian?Ubuntu?Windows 10 IoT Single-Touch, Free drive. When used as a computer monitor, support 10 / 8.1 / 8 / 7, Five point touch, Free drive
